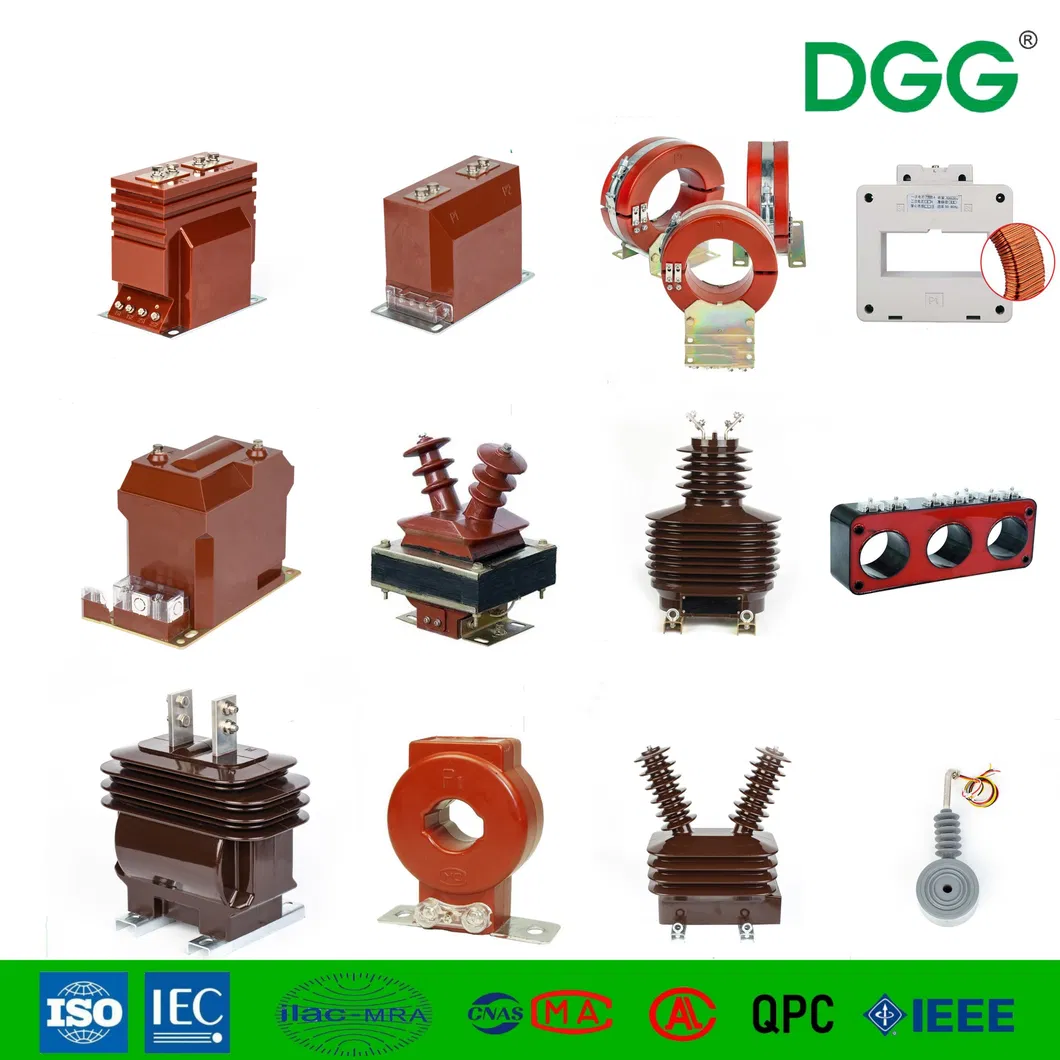

We are a distinguished and professional manufacturer of precision-engineered current transformers, dropout fuse cutouts, voltage transformers, vacuum circuit breakers, and power distribution transformers.
We specialize in bespoke production tailored to customer specifications, complete with comprehensive testing reports and certifications. Each of our instrument transformers is backed by rigorous professional testing.

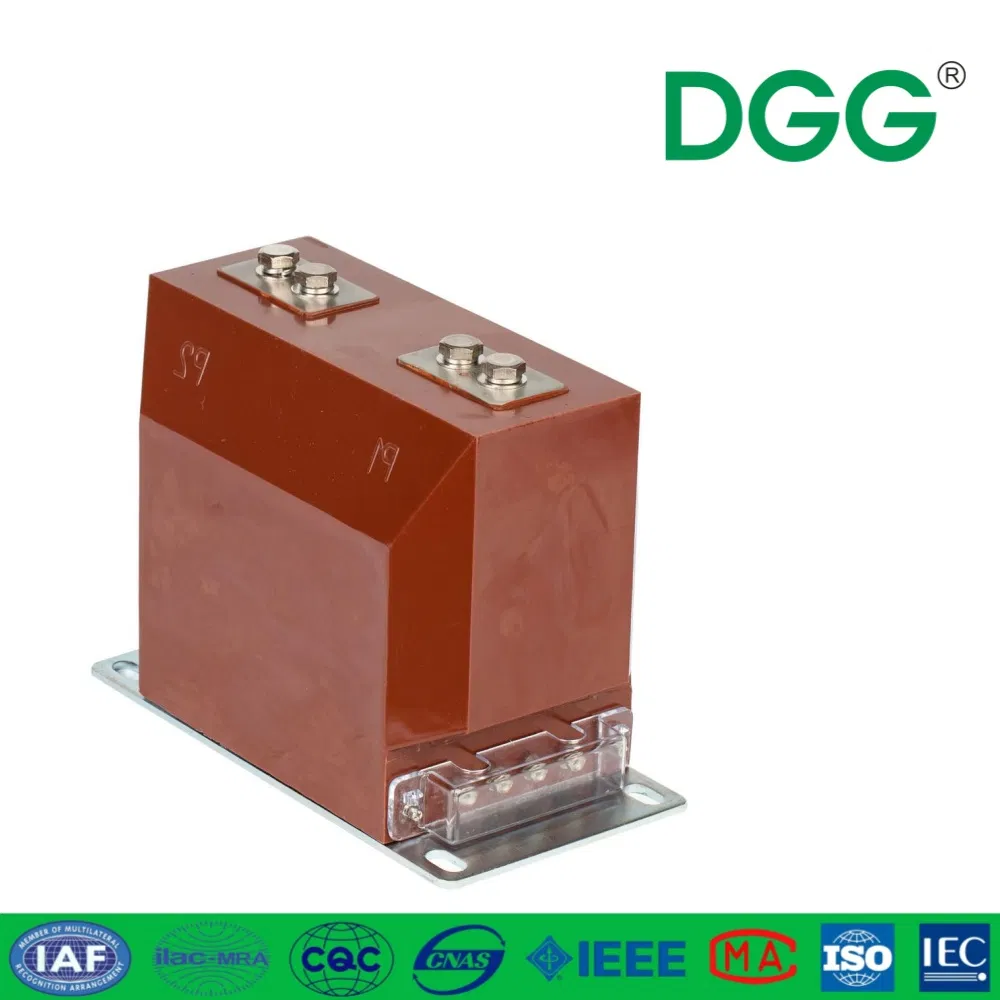

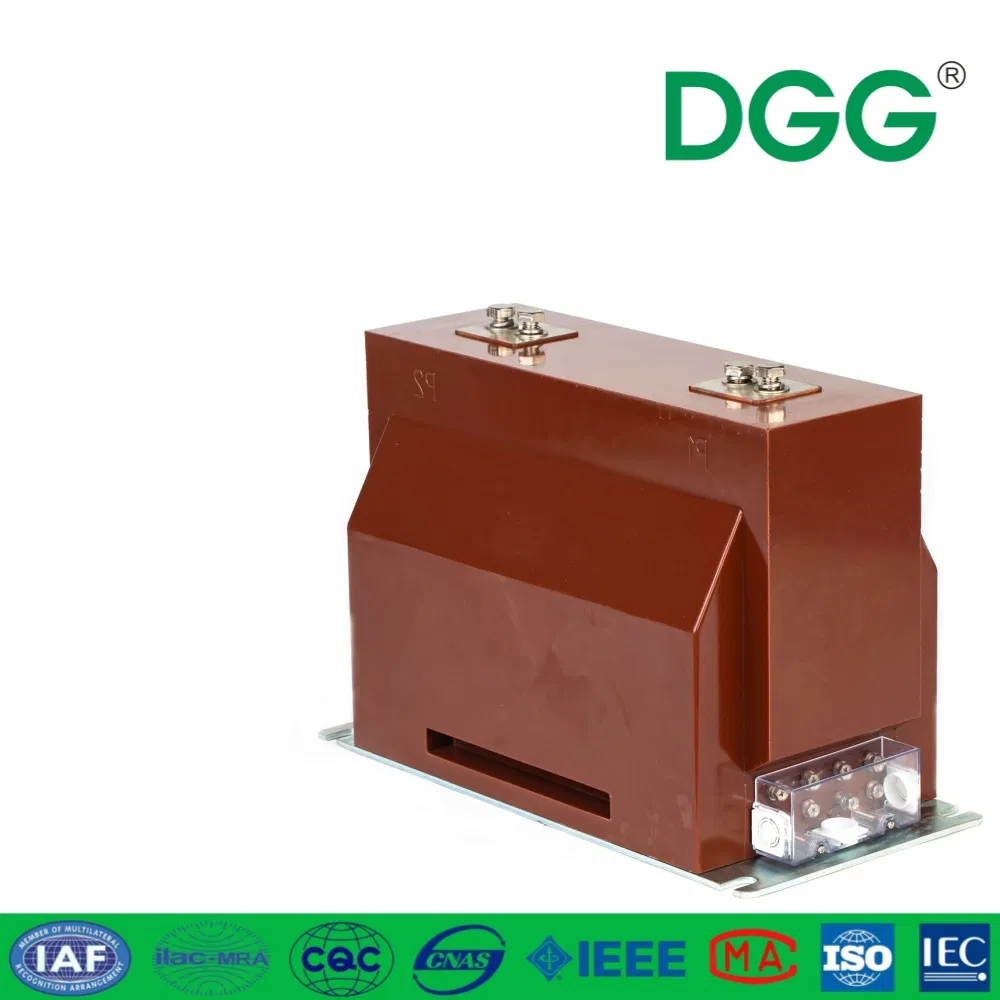

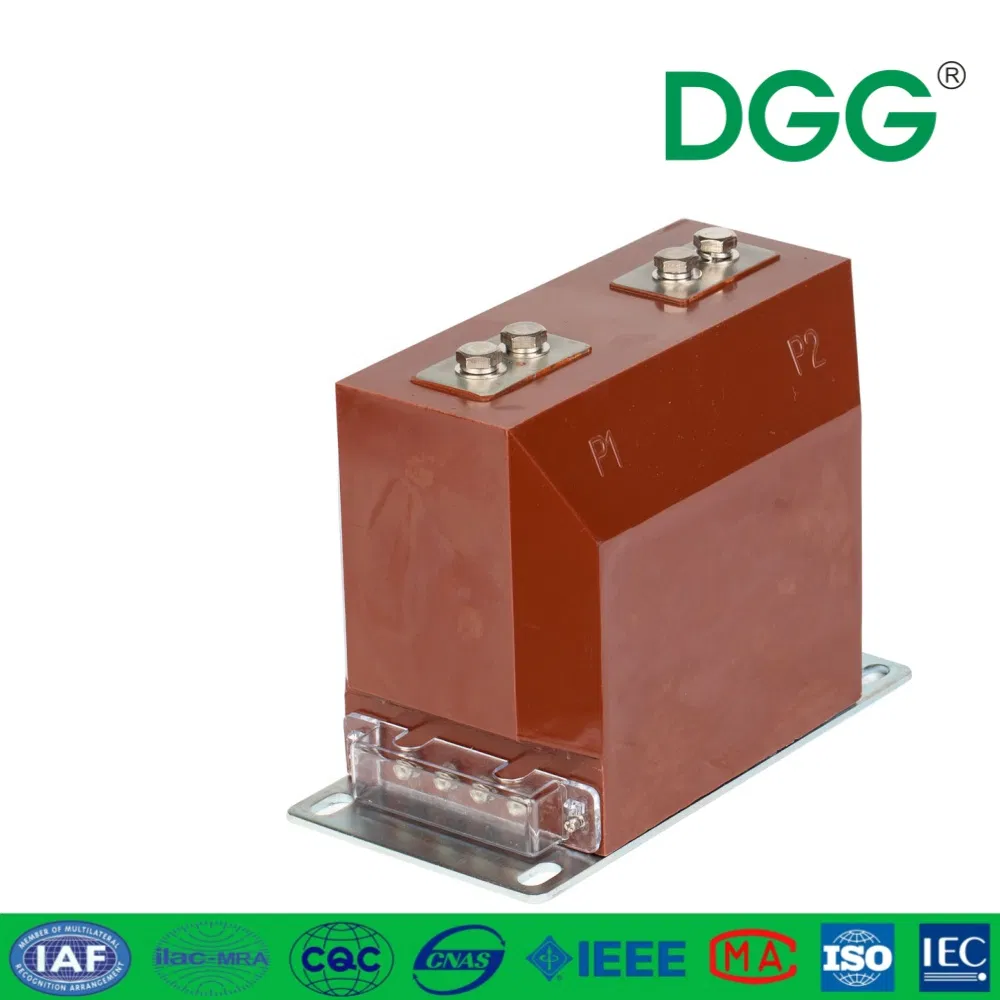

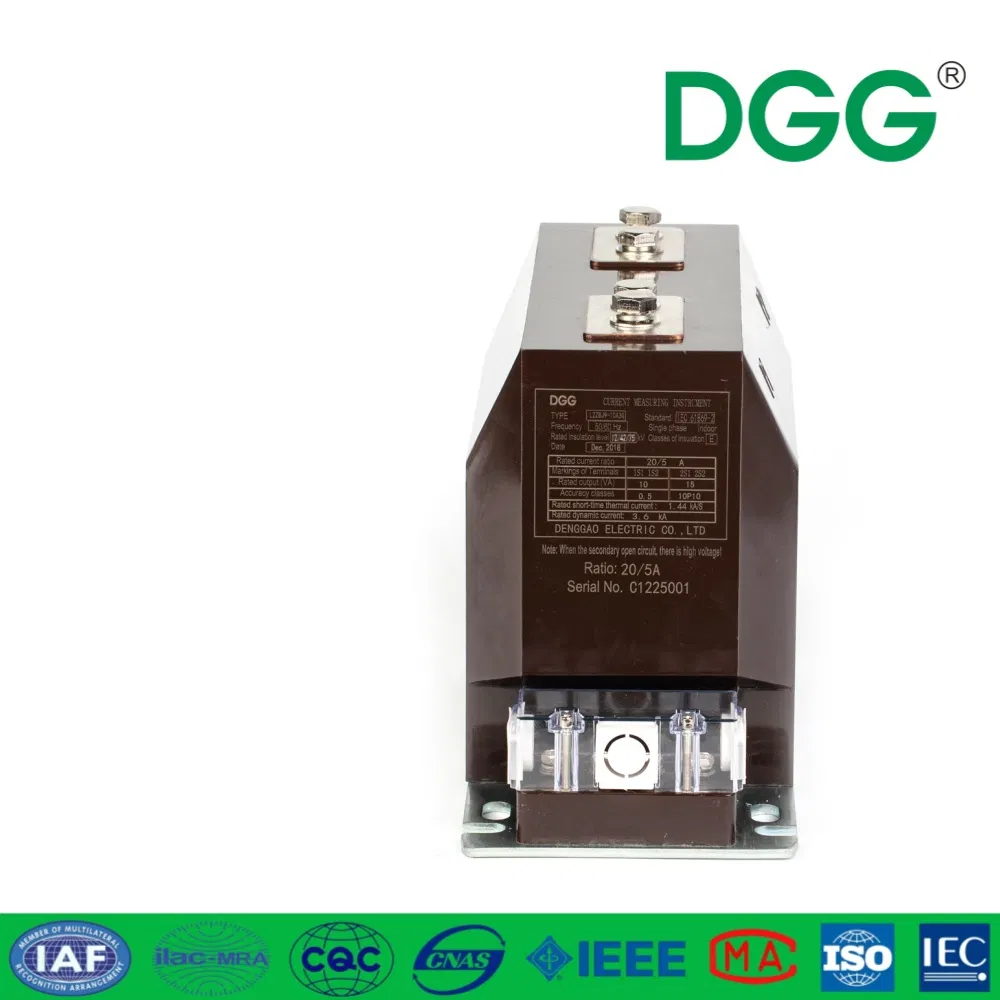

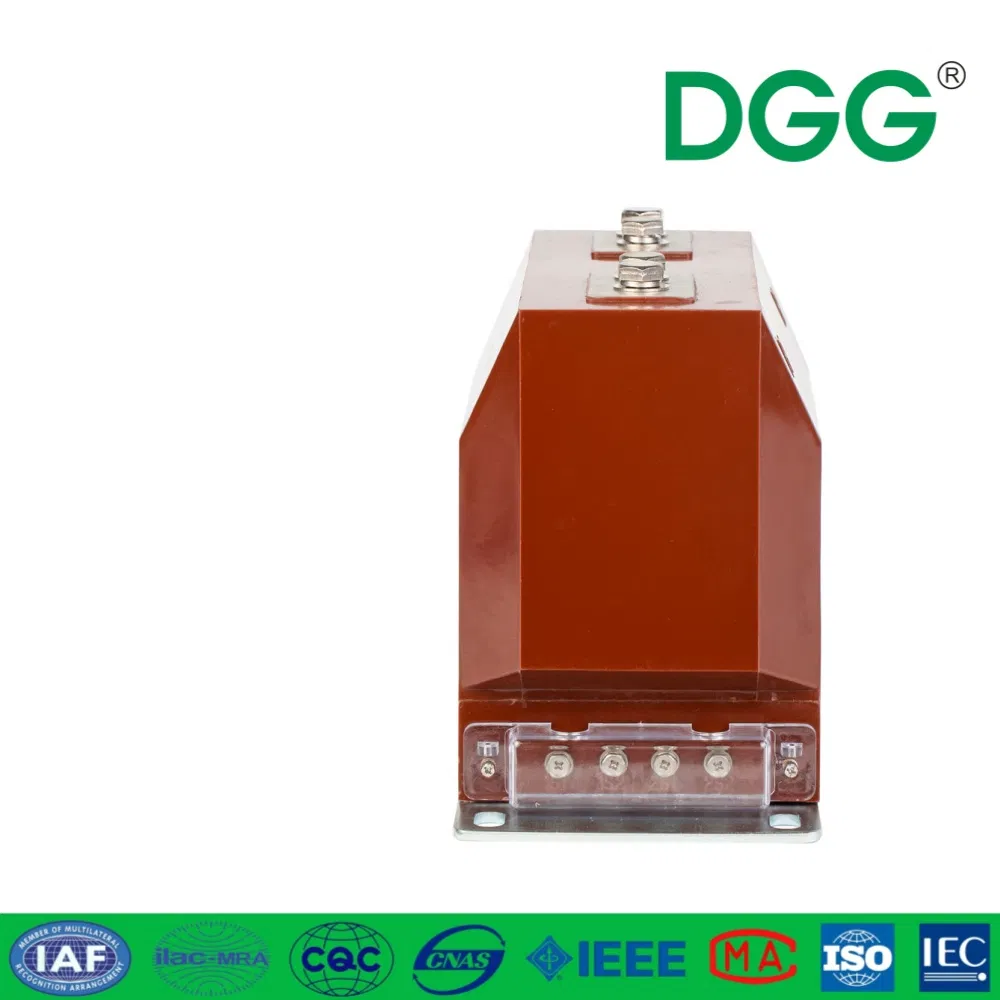

Our advanced 12kv 1A Single Phase Current Transformer features an epoxy-resin vacuum casting coupled with a fully enclosed post structure. It is the perfect choice for power systems operating at a rated frequency of 50Hz or 60Hz, with voltage ratings up to 10kV.
Accuracy Classes: Available in 0.2S, 0.2, 0.5, and 10P, ensuring precision for electric energy metering and robust relay protection.
Standards Compliance: Adheres strictly to GB20840.1-2010, GB 20840.2-2014, and JJG 313-2010 standards.
| Rated Primary Current (A) | Accuracy Class | Rated Output (VA) | Rated Short-time Thermal Current (kA/S) | Rated Insulation Level (kA) |
|---|---|---|---|---|
| 5 | 0.2S / 0.2S / 10P20 | 20 / 20 / 30 / 30 | 0.36 | 0.9 |
| 10 | 0.72 | 1.8 | ||
| 20 | 1.44 | 3.6 | ||
| 50 | 3.6 | 7.2 | ||
| 100 | 7.2 | 18 | ||
| 500 | 36 | 72 | ||
| 1000-1500 | 0.2S / 10P20 | 30 / 30 | 72 | 144 |
Technical Parameters:
Normal Environmental Usage:

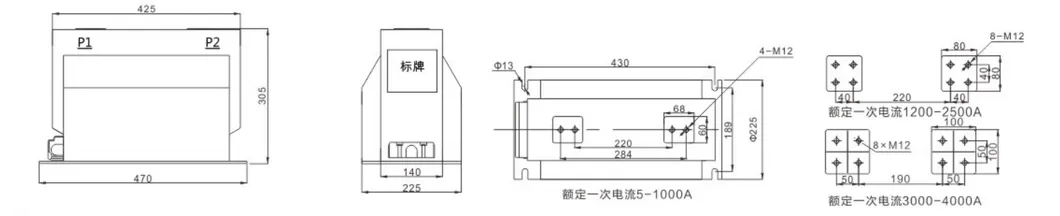

We can design products of different sizes and dimensions according to the requirements provided by the customer.
Our exceptional products have journeyed across the globe, finding homes in countries such as Ghana, Ethiopia, Philippines, South Korea, Australia, Pakistan, Myanmar, and beyond.
Our expert team is dedicated to crafting the most economical and efficient power solutions. We have successfully addressed and fulfilled a diverse array of overseas substation and distribution strategies.

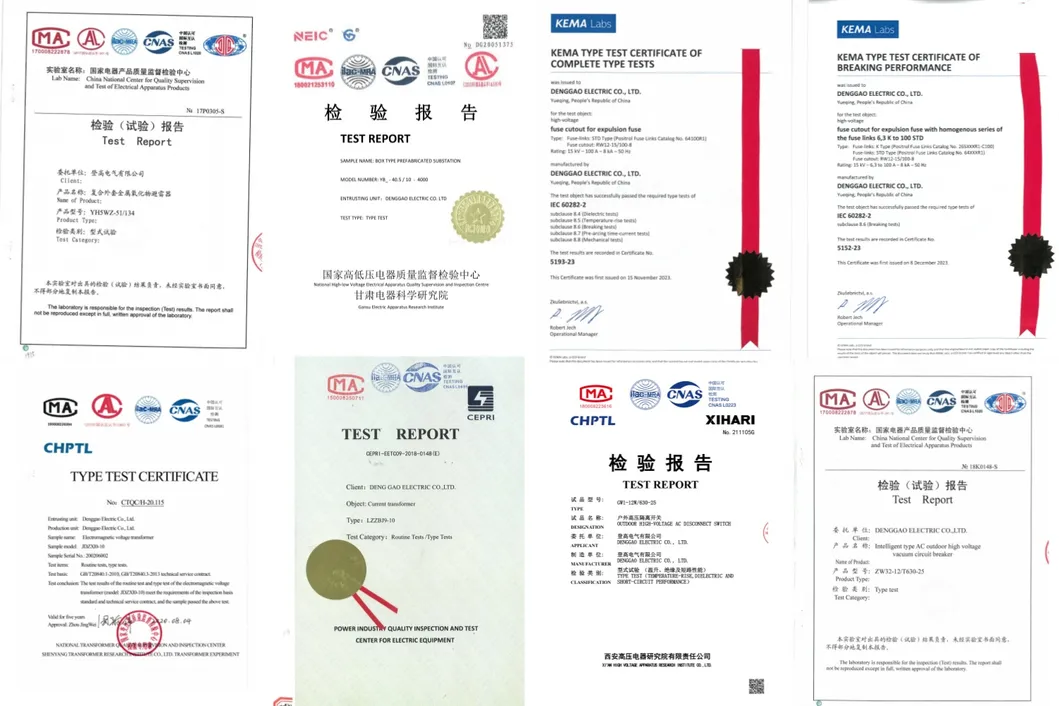

We pride ourselves on our range of certifications, including ISO and Kema certifications. Our extensive collection of comprehensive type test reports attests to the superior performance of our transformers.

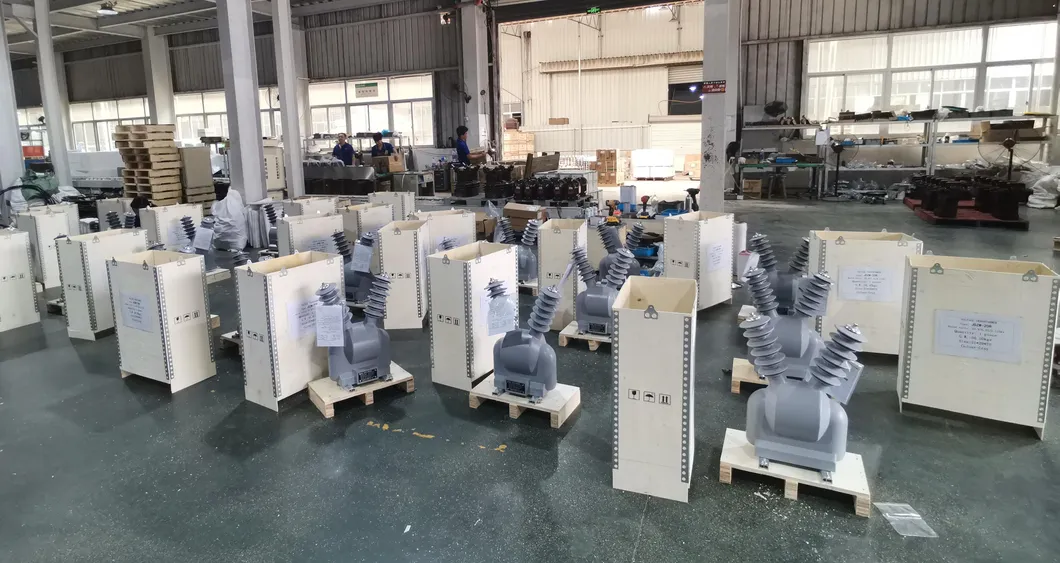

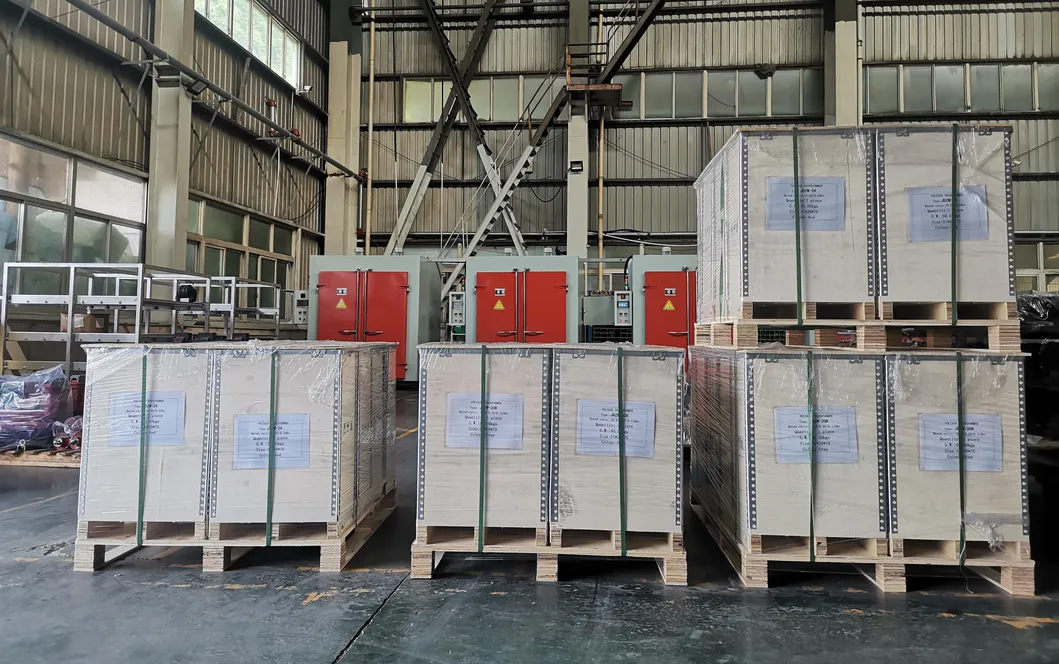

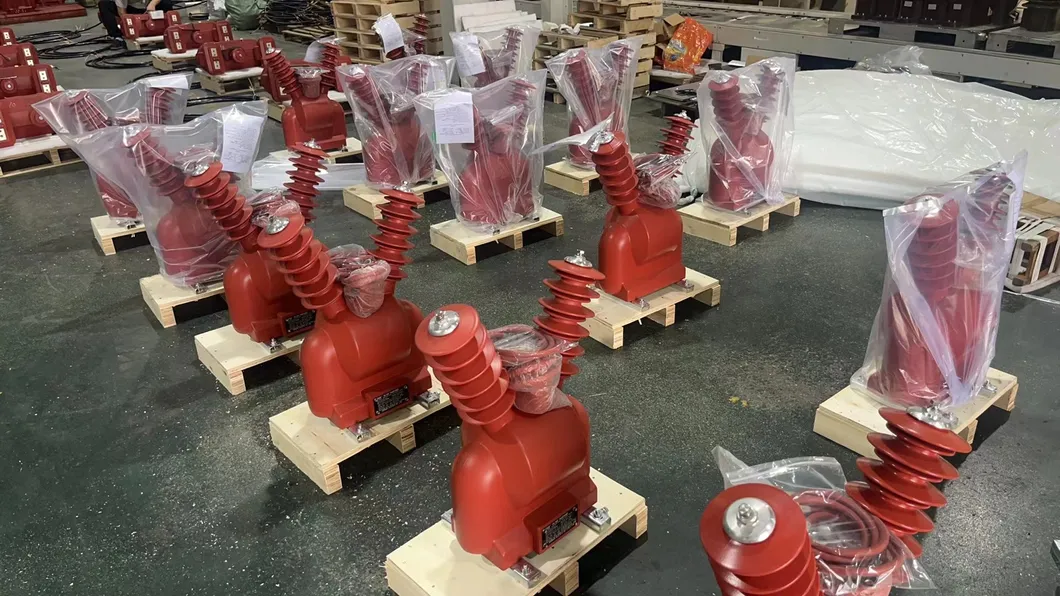

Our dedicated team offers bespoke customization including wooden boxes, unique logos, and personalized labels to meet your exact brand specifications.
