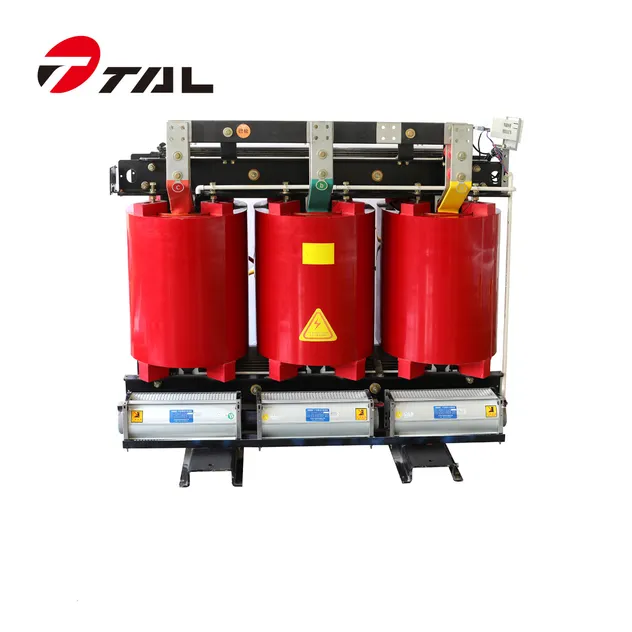

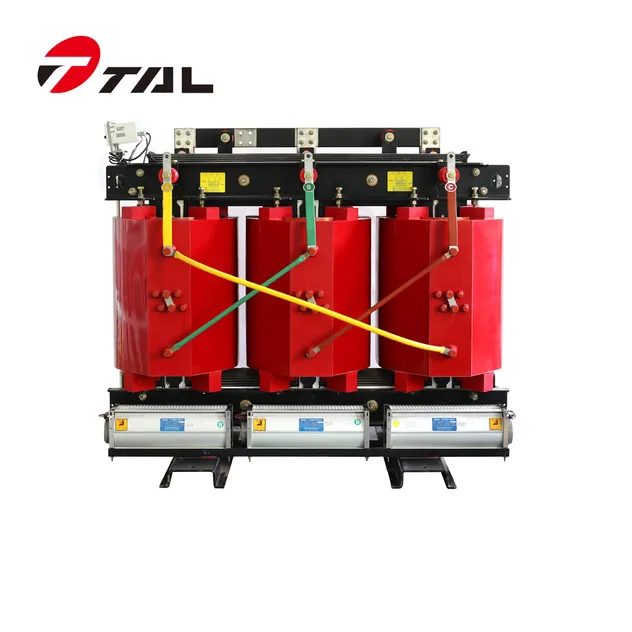

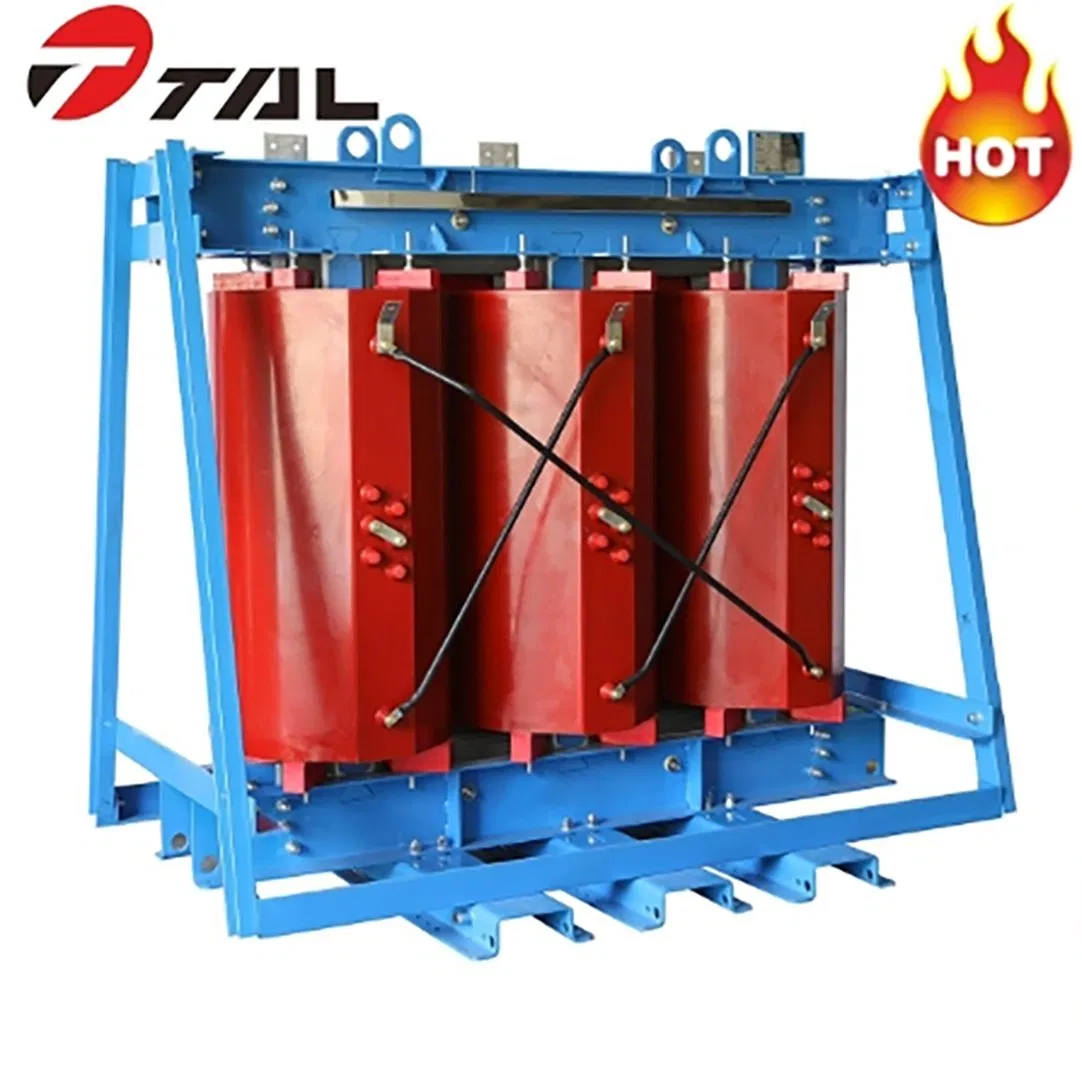

1000kVA Energy-Efficient Three-Phase Electronics Current Dry Type Transformer

Product Overview

Model NO.

SCB

Core

Core-type Transformer

Cooling Method

Dry-type Transformer

Winding Type

Two-winding Transformer

Certification

ISO9001, CCC, Asta

Usage

Distribution & Power Transformer

Rated Capacity

30kVA-2500kVA

High Pressure

6kv-35kv

Vector Group

Dyn5, Dyn11, Yyn0

HS Code

8504349000

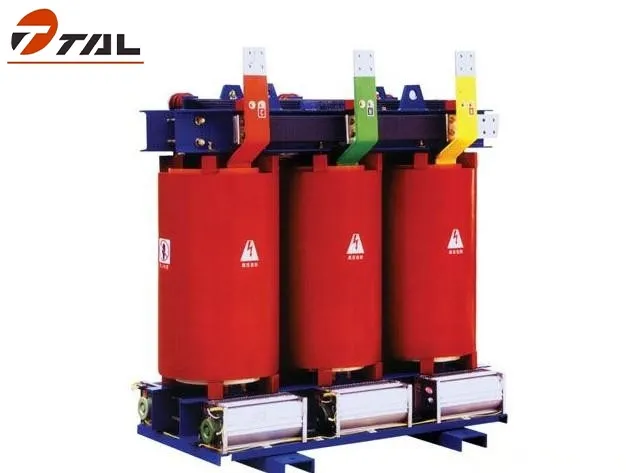

Cast Resin Dry Type Transformer

Our Cast Resin Dry Type Distribution Transformers are engineered for reliable performance in industrial and power distribution applications. Available in capacities from 630kVA to 3150kVA, these three-phase units feature cast resin insulation for superior fire resistance, low maintenance, and suitability for indoor or high-altitude installations.

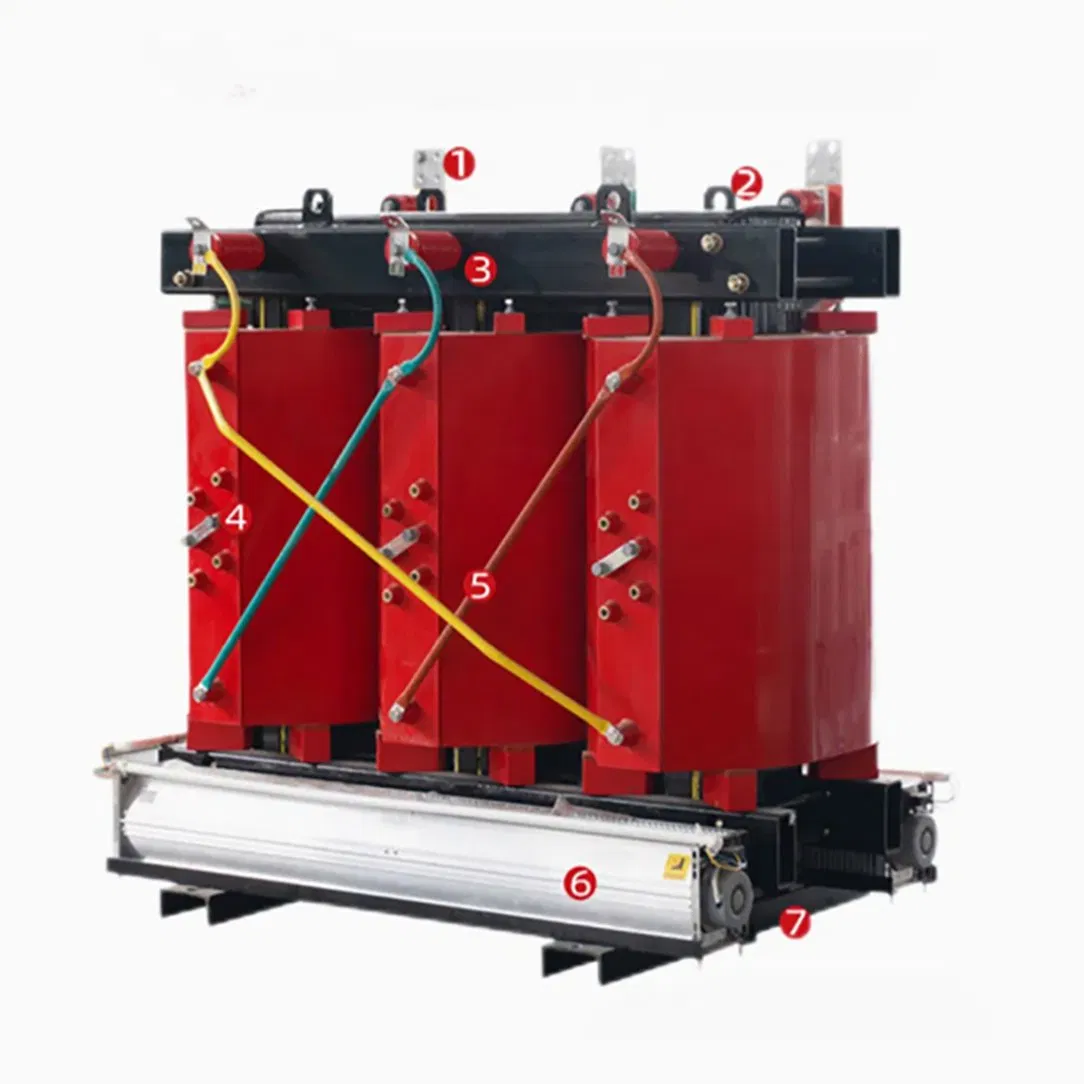

💡 Key Components & Technology

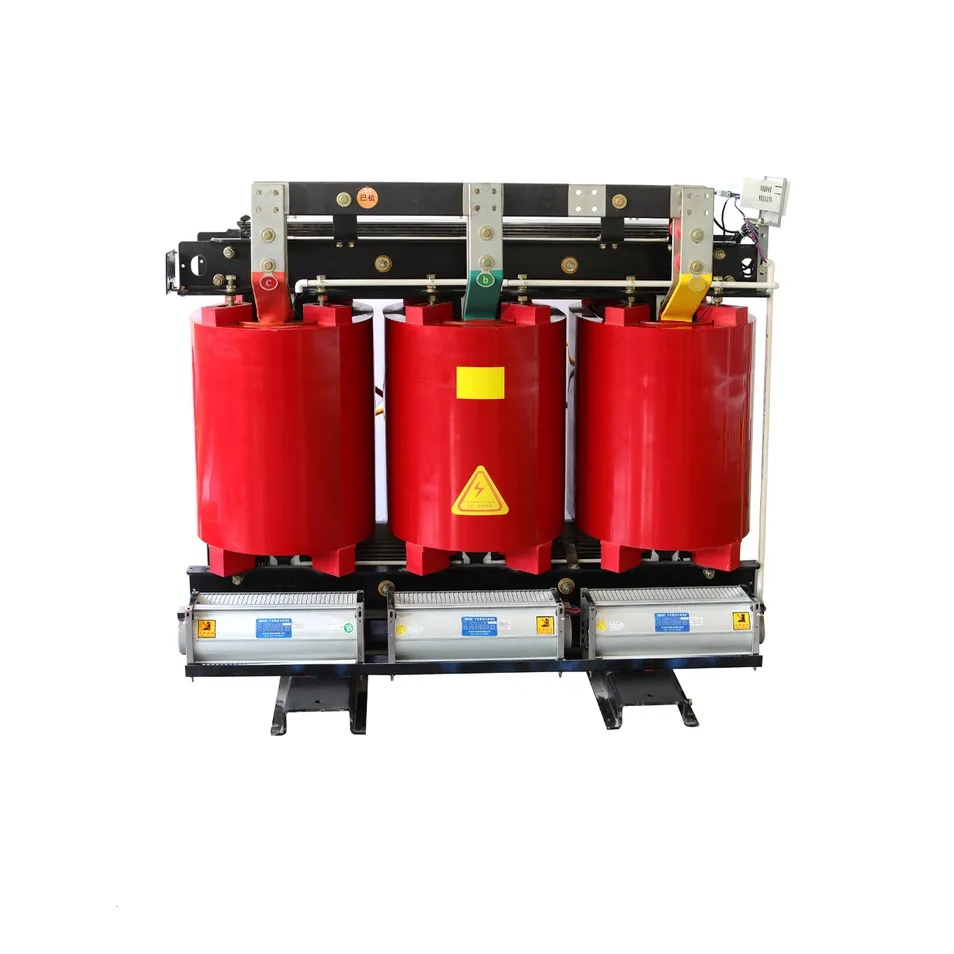

Product Overview

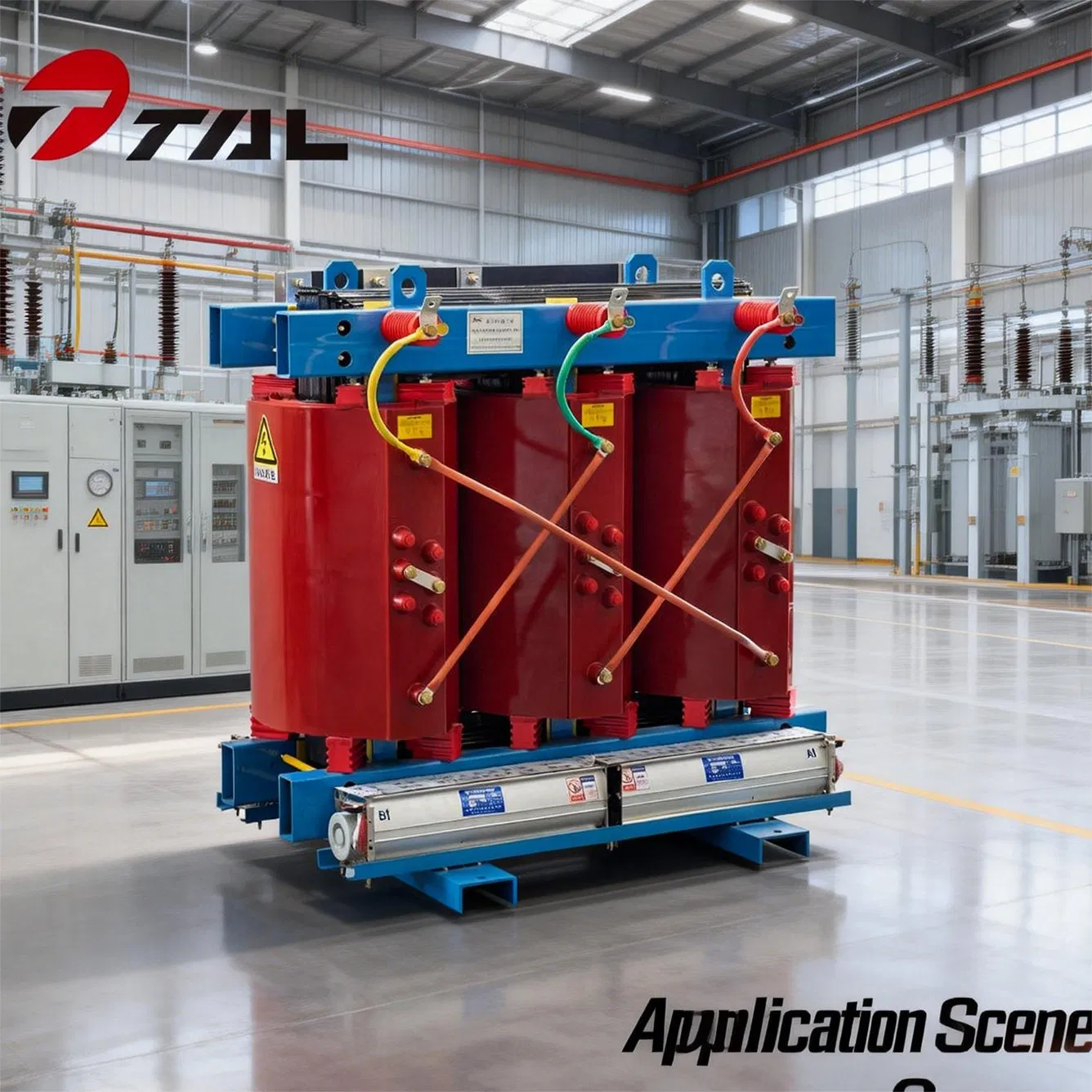

Epoxy resin dry-type transformers are ideal for indoor installations. They are widely used in lighting, high-rise buildings, airports, and CNC machinery.

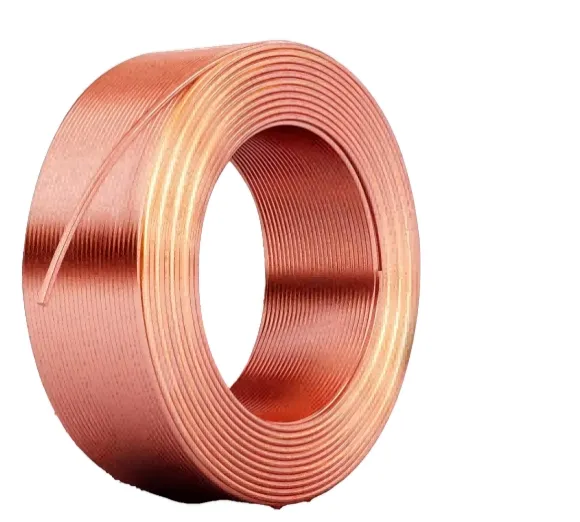

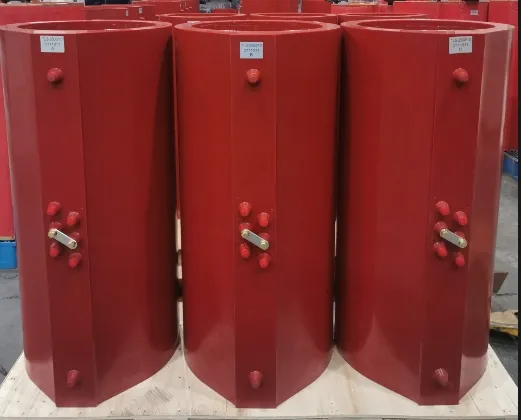

High Temperature Resistant Coil
Advanced materials enable resistance up to 150°C. High-quality insulation ensures long life and reliable operation in tough conditions.

Magnetic Core
High-permeability materials reduce excitation current. Low-loss design ensures energy efficiency and quiet operation.

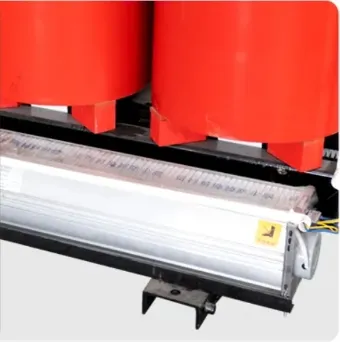

Cross Flow Cooling Fan
Accelerates air movement to quickly remove heat, enhancing reliability for stable long-term operation.

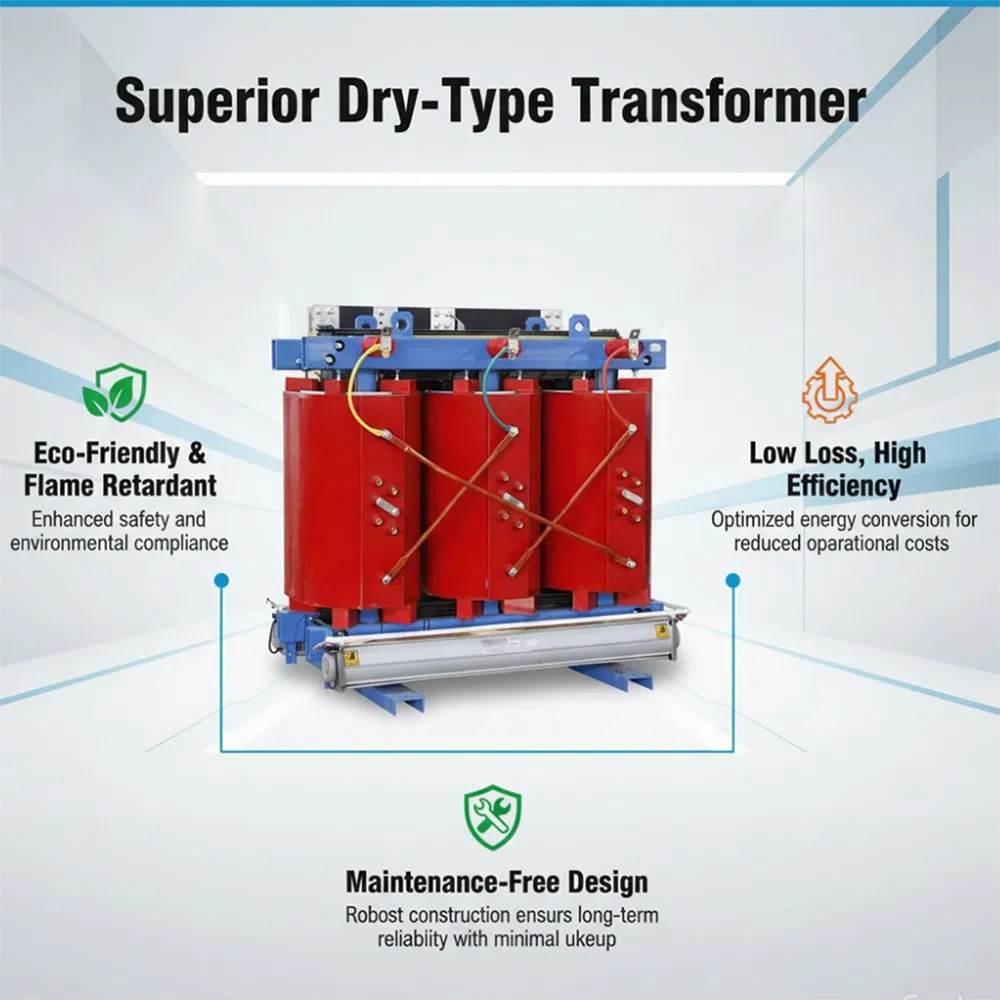

Core Features

1

Safe, fireproof, and pollution-free; can be run directly in the load center.

2

High mechanical strength and strong short-circuit resistance.

3

Low loss, low noise, and maintenance-free operation.

4

Excellent moisture-proof performance for harsh environments.

5

Equipped with intelligent signal temperature control systems.

6

Compact volume and light weight for low installation costs.

Technical Specifications

Note: Values can be customized according to local demand!

Our dedicated team provides on-site surveys and professional consultations to identify specific application scenarios (power, railway, mining) and environmental requirements.

Rated Capacity (kVA)	Voltage Combination			Connection Group	No-load Loss (W)	Load Loss (W)
Rated Capacity (kVA)	HV (kV)	Tap Range	LV (kV)	Connection Group	No-load Loss (W)	130°C	155°C	180°C
100	20-24	±2x2.5%	0.4	Dyn11	540	1870	1990	2130
315	20-24	±2x2.5%	0.4	Dyn11	970	3850	4080	4360
630	20-24	±2x2.5%	0.4	Dyn11	1530	6450	6840	7320
1000	20-24	±2x2.5%	0.4	Dyn11	2070	9220	9780	10400
1600	20-24	±2x2.5%	0.4	Dyn11	2790	13000	13800	14800
2500	20-24	±2x2.5%	0.4	Dyn11	3870	18200	19300	20700

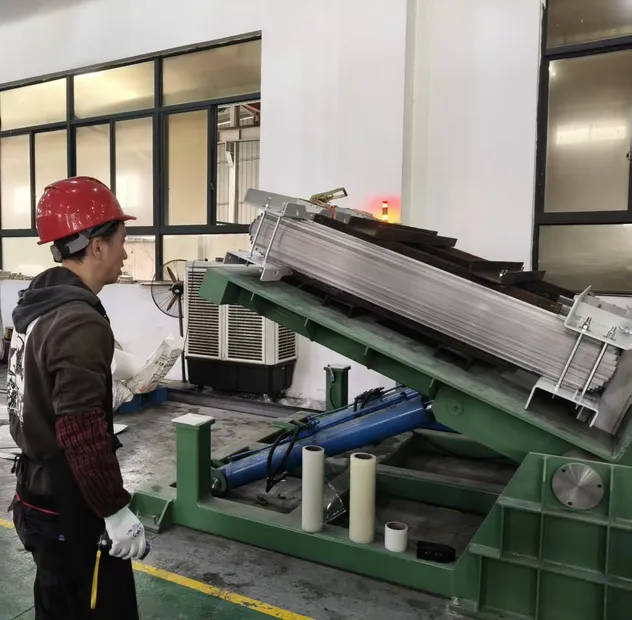

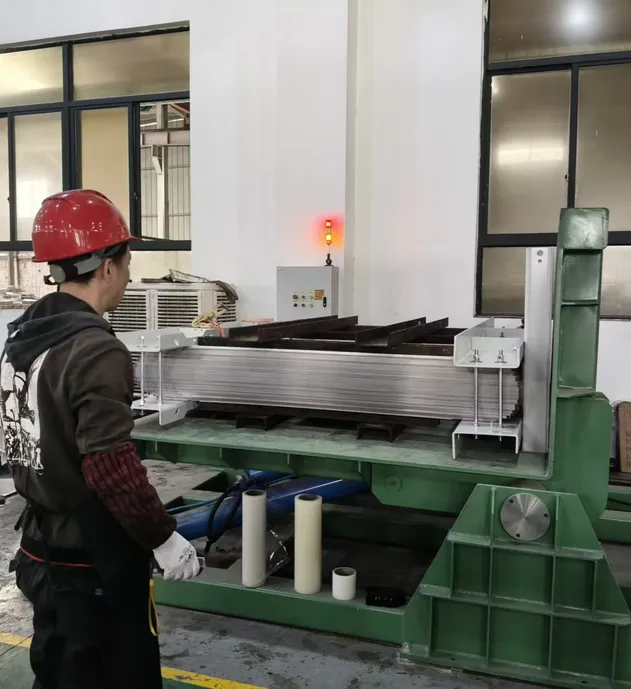

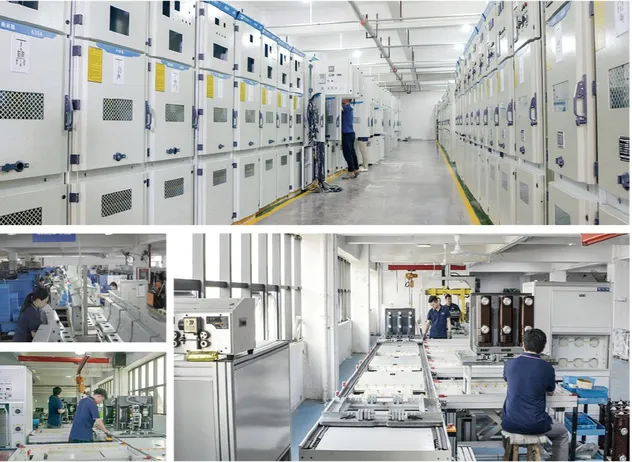

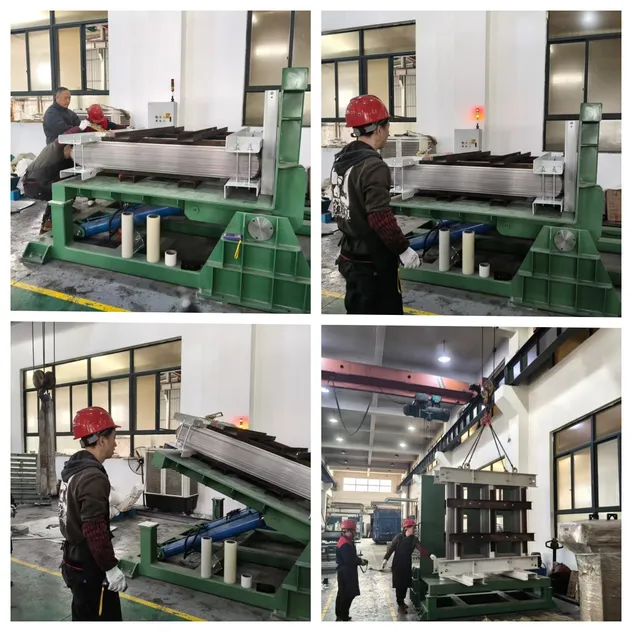

Production Workshop

After Sales Service

Professional Technical Support
7×24-hour consulting with remote guidance for installation and commissioning.

Comprehensive Guarantee
Standardized warranty with free repair or replacement for non-human damage.

Factory Display

With over 35 years of expertise in the power transmission and distribution industry, we specialize in dry-type transformers, oil-immersed transformers, and compact substations used globally in railways, mining, and urban grids.

Frequently Asked Questions

Q1: Are you a manufacturer or trading company? A1: We are a dedicated manufacturer specialized in designing and producing high-quality transformers, switchgears, and power substations according to international standards.

Q2: How do you handle quality control? A2: All products undergo 100% checking and testing before delivery. We provide inspection videos and detailed reports to ensure performance and reliability.

Q3: What is the typical delivery time? A3: Usually, production and delivery take about 15-20 days. For customized designs, we provide a detailed timeline during the quotation phase.

Q4: What materials are used in the windings? A4: We offer both copper and aluminum windings based on your requirements. Copper provides better long-term performance and efficiency.

Q5: What is the warranty period for your transformers? A5: We provide a 2-3 year quality warranty from the date of delivery, assuming the products are used under correct operational conditions.

Q6: Do the products have international certification? A6: Yes, our products carry CE, 3C, and CQC certifications. We can also assist in applying for other specific regional certificates as needed.
