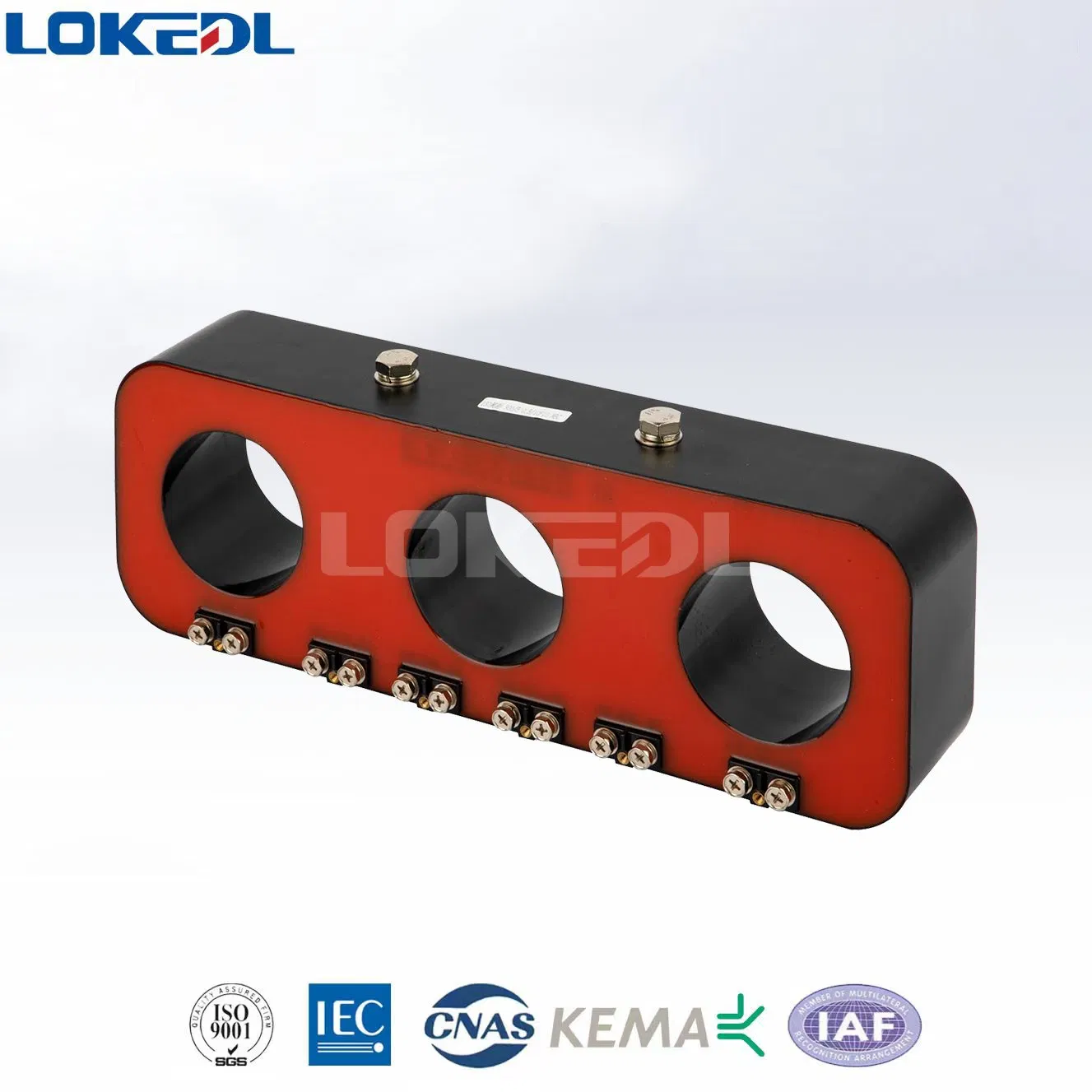

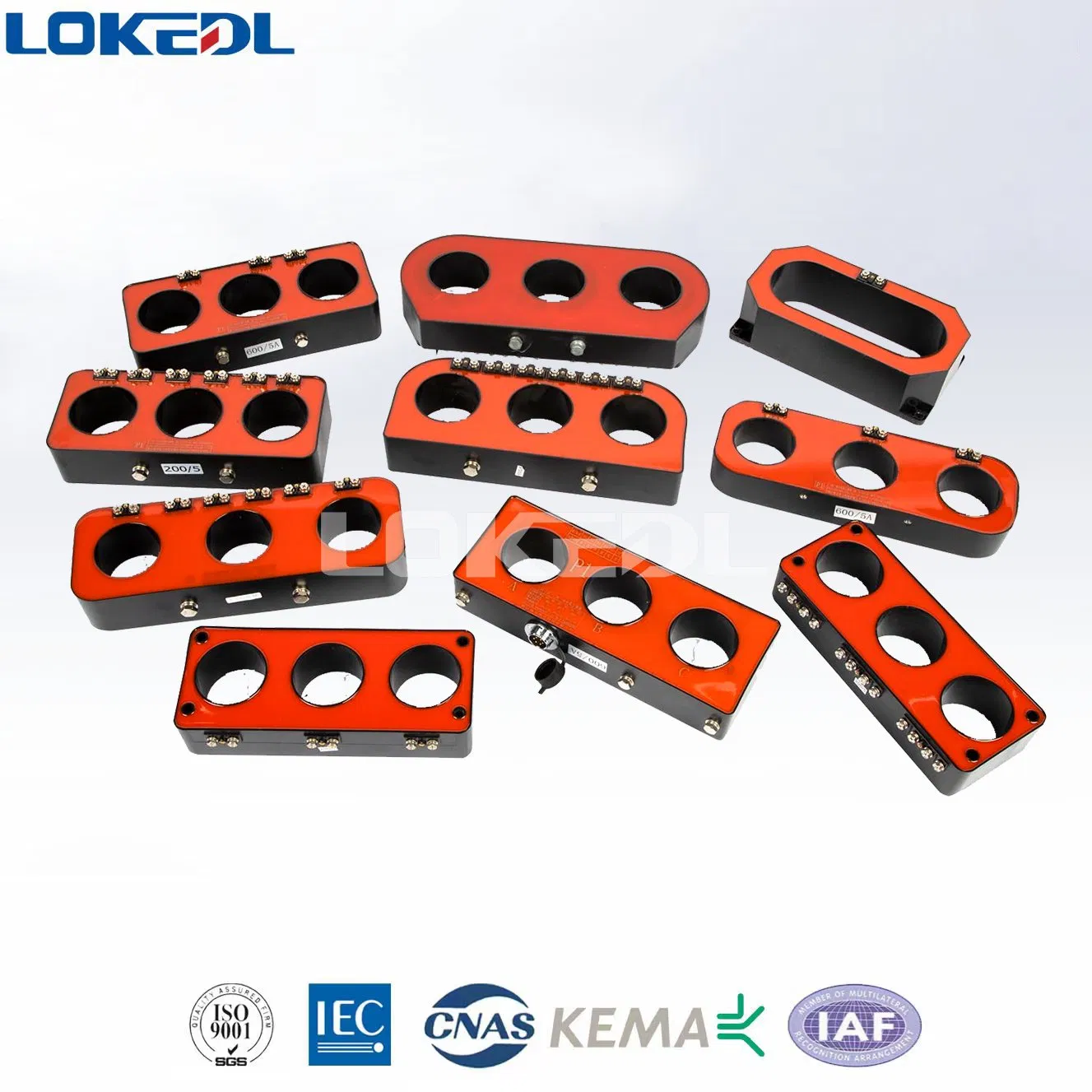

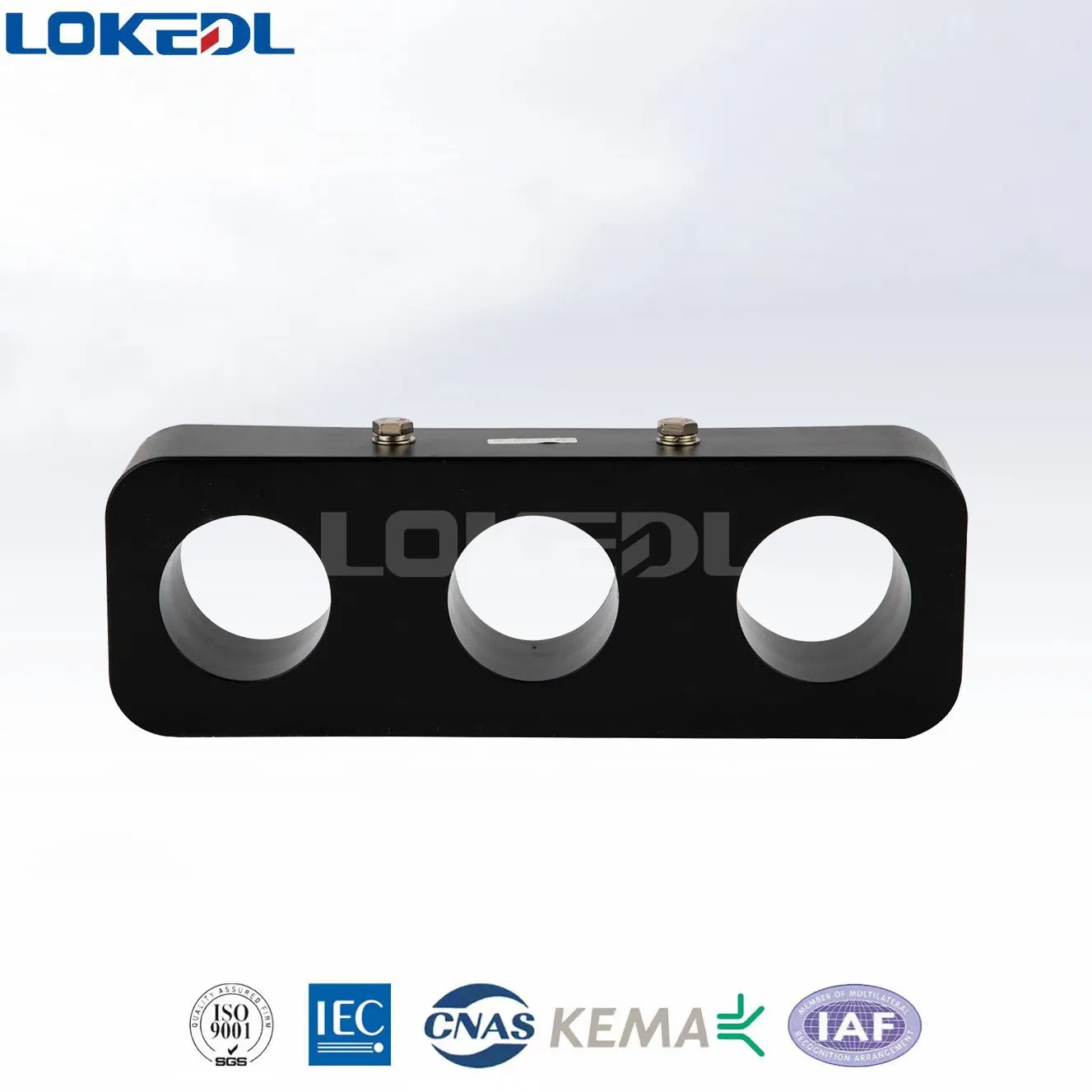

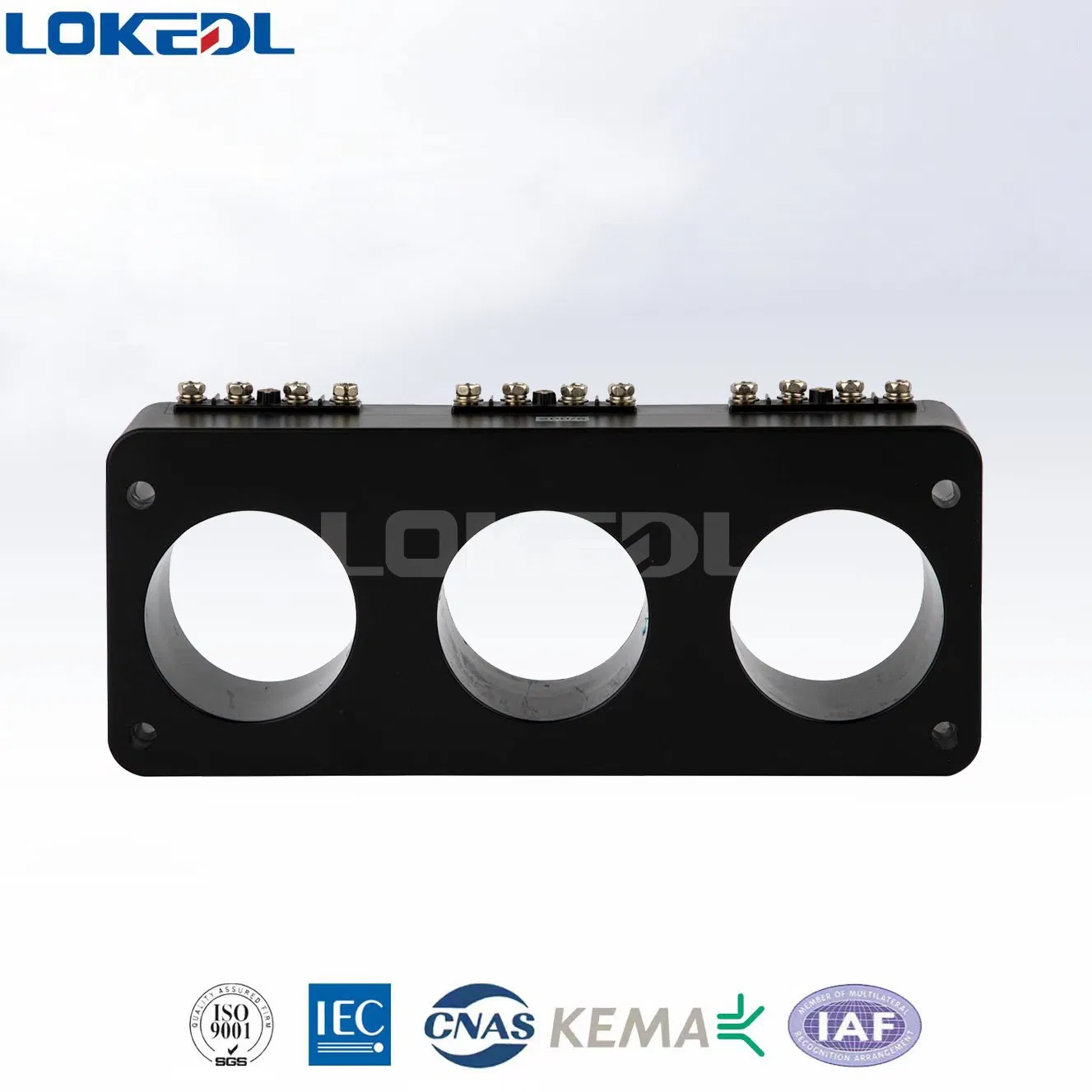

Our Inductive Current Transformer is specifically designed for cabinet protection. It utilizes high-quality epoxy resin casting for superior insulation and durability in indoor environments.
| Type | Ratio | Measuring Class | Protective Class | Double Winding | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.2S | 0.2 | 0.5 | 10P10 | 10P15 | 10P20 | 0.2S | 0.5 | 10P10 | 10P15 | ||
| LSY-10 | 75 | 2 | 2 | 1 | 2.5 | - | - | - | 1 | 1 | - |
| LSY-10 | 100 | 2.5 | 2.5 | 2.5 | 5 | - | - | - | 1 | 1 | - |
| LSY-10 | 150 | 2.5 | 2.5 | 2.5 | 5 | - | - | - | 1.5 | 1.5 | - |
| LSY-10 | 200 | 5 | 5 | 2.5 | 7.5 | - | - | - | 2.5 | 2.5 | - |
| LSY-10 | 300 | 5 | 5 | 5 | 7.5 | - | - | - | 2.5 | 2.5 | - |
| LSY-10 | 400 | 10 | 10 | 5 | 15 | - | - | - | 5 | 5 | - |
| LSY-10 | 600 | 10 | 15 | 10 | 15 | - | - | - | 5 | 7.5 | - |
Need custom sizes? Contact us - we can make it happen.

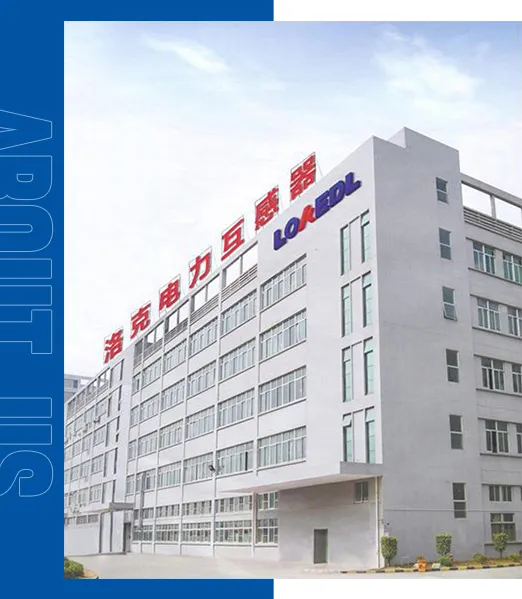

Established in 2010, our company specializes in distribution network automation products. We integrate R&D, production, and sales to provide comprehensive power system solutions.
We primarily produce 10-35kV medium voltage transformers, including epoxy resin casting types, zero sequence transformers, and electronic transformers for ring network cabinets.

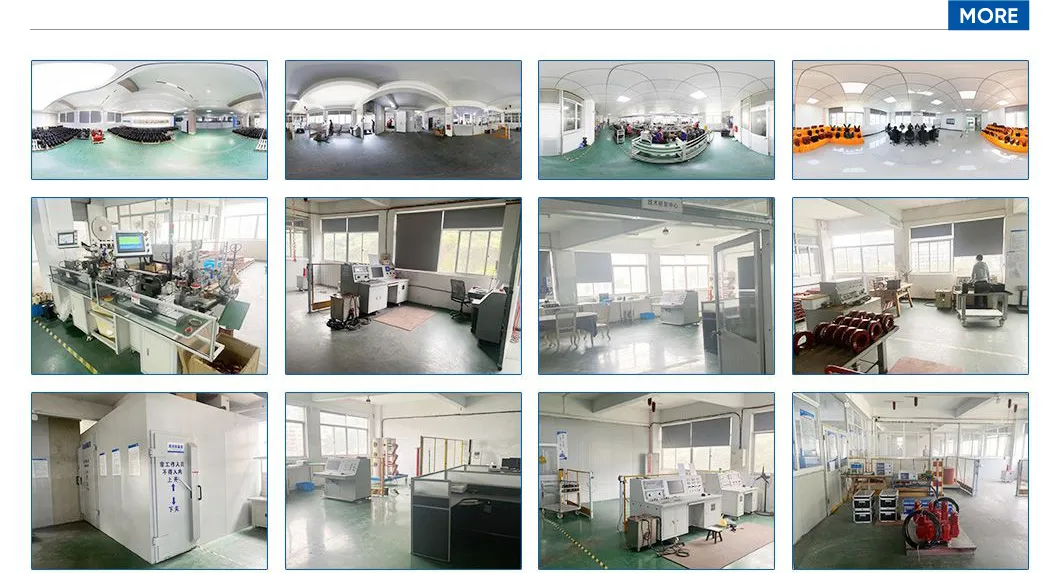

Our facilities are equipped with first-class production and testing equipment. We hold ISO9001, ISO14001, and ISO45001 certifications. All products pass rigorous national laboratory tests to ensure safe and efficient power usage.
