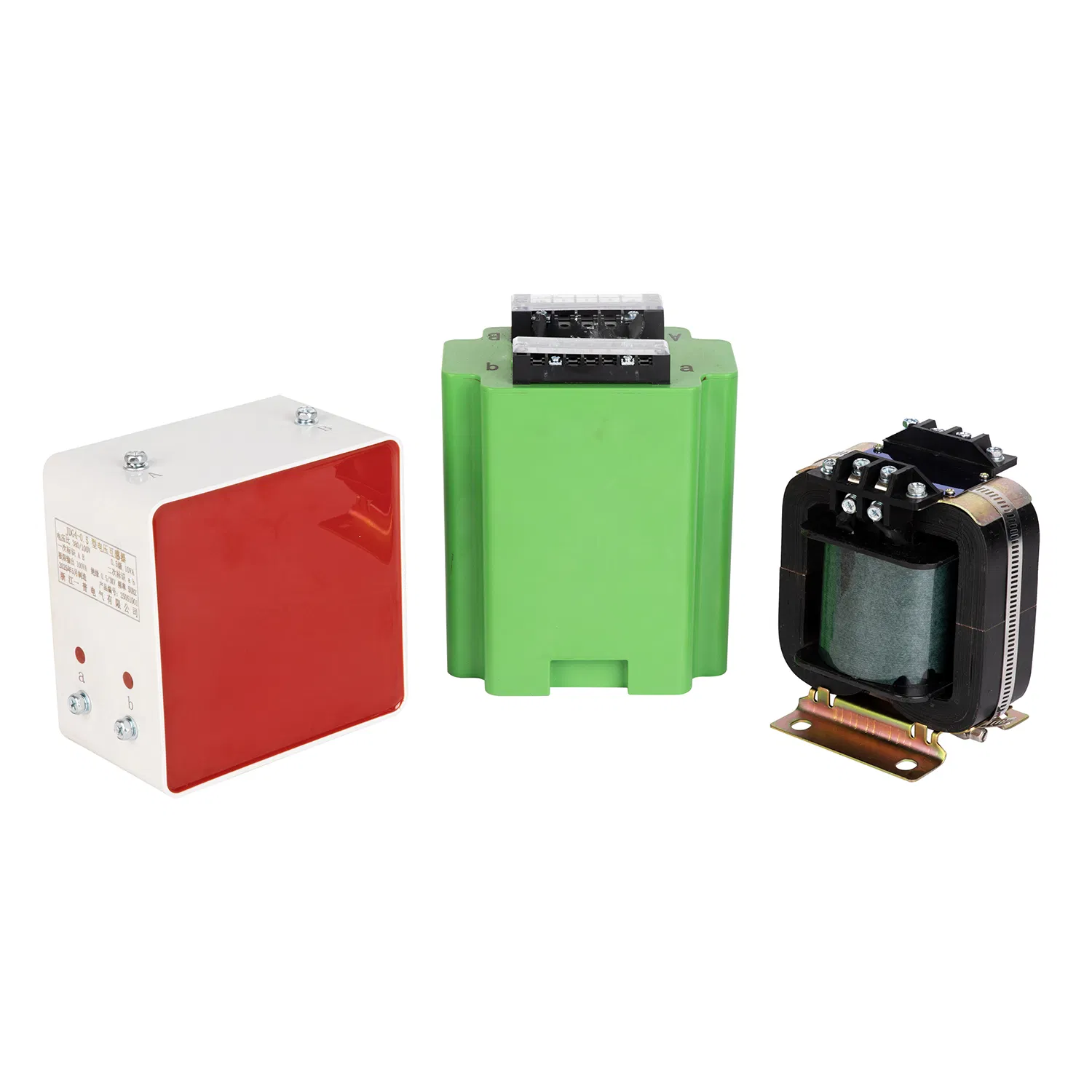

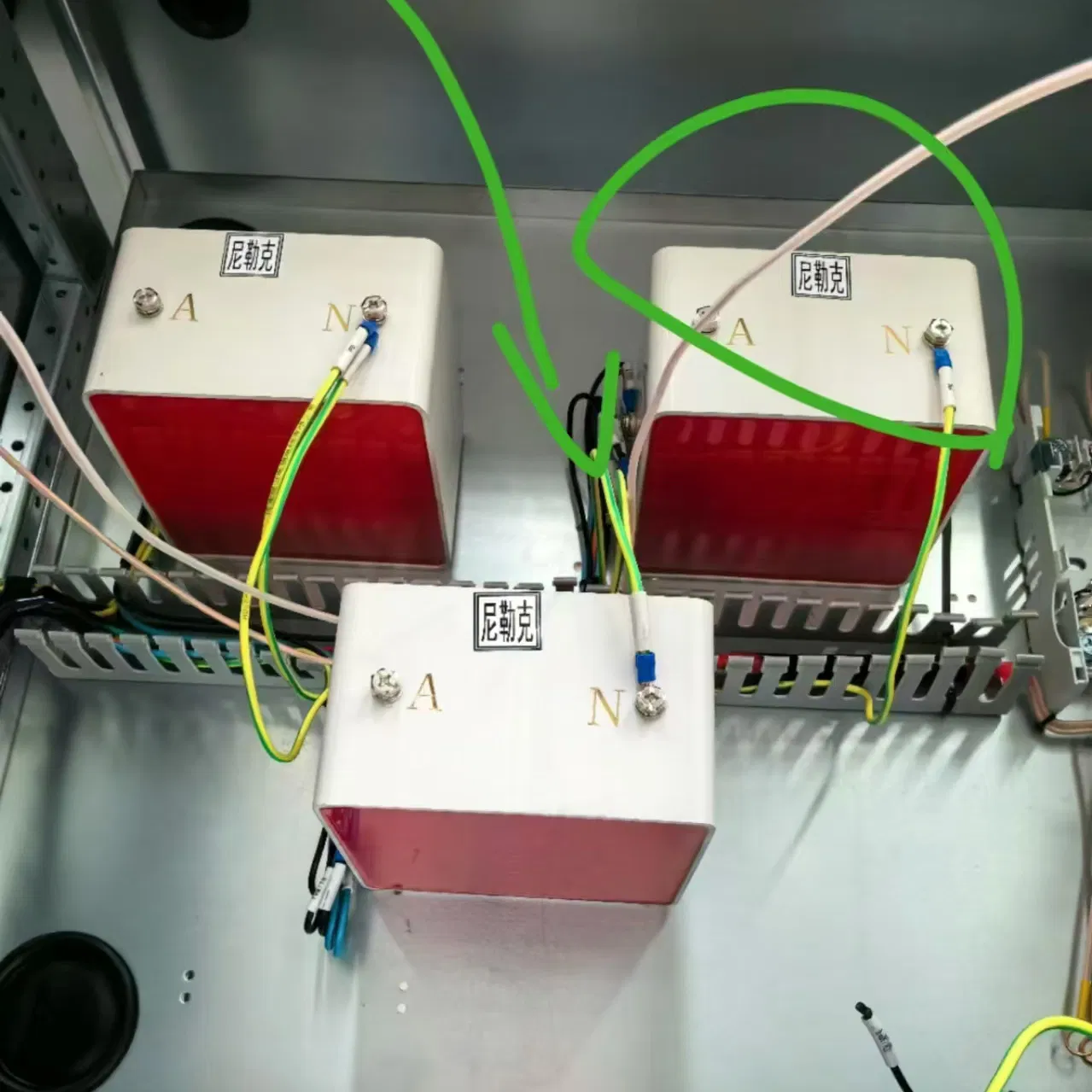

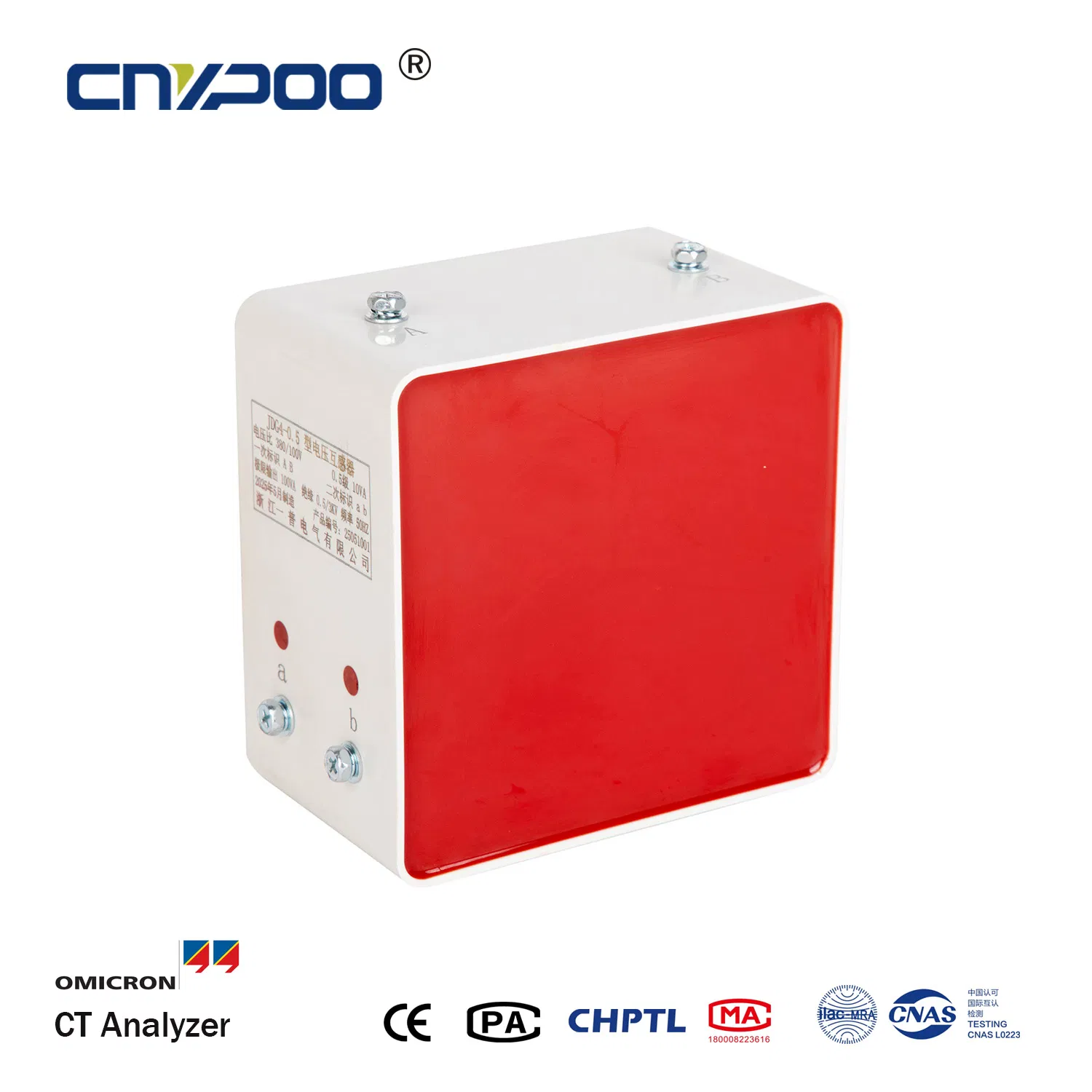

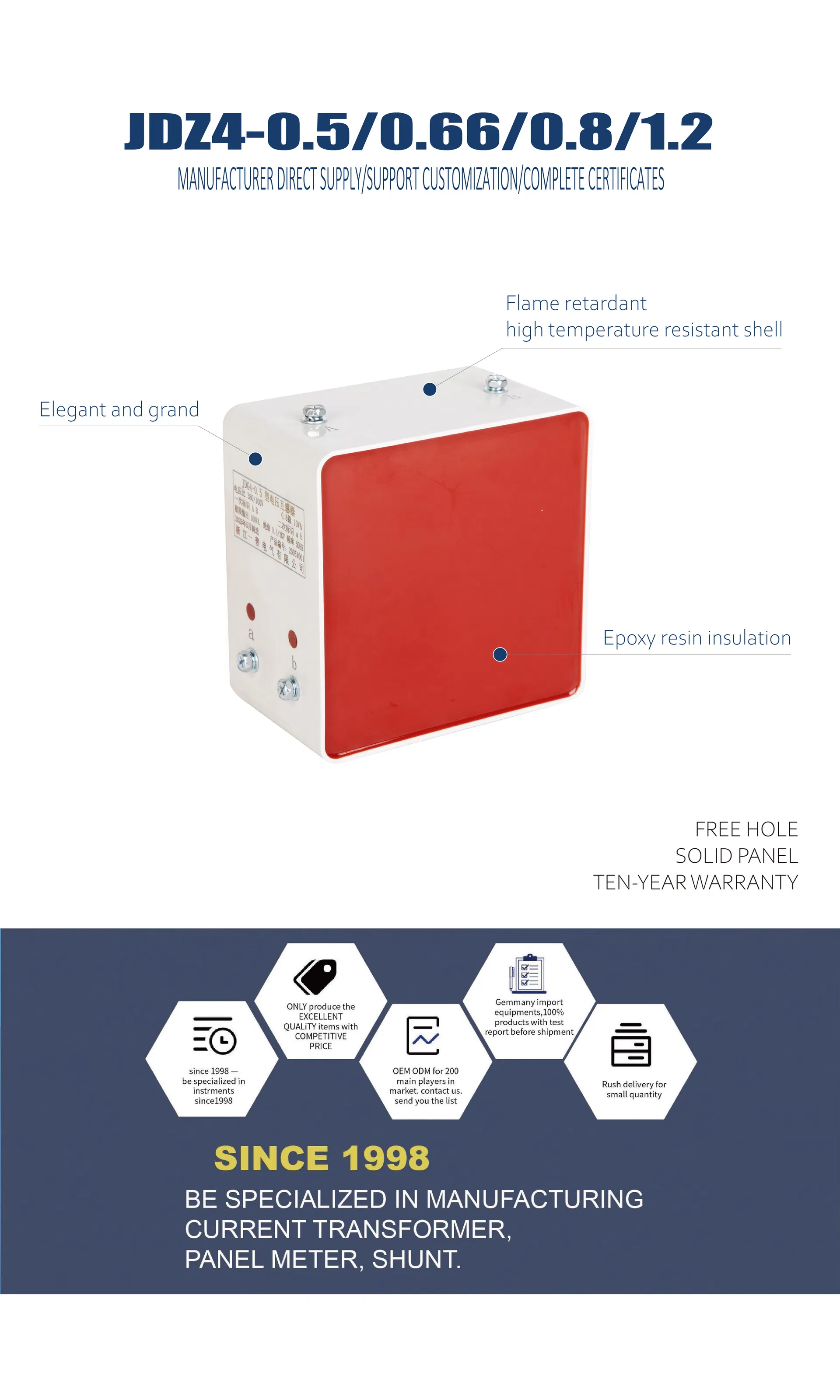

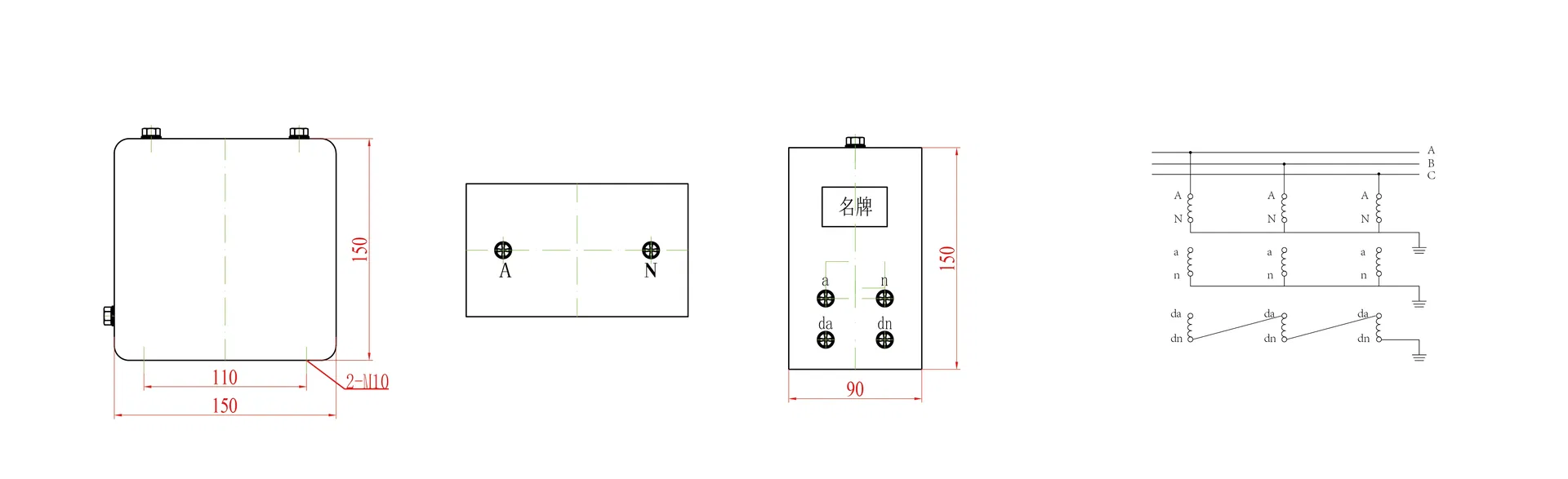

Model: JDG-0.5 Epoxy - Casting Type Low-Voltage Voltage Transformer
| TYPE | Ratio (kv) | Class | Rated Output (VA) | Limit Output (VA) | Insulation Level (kv) | Weight (Kg) |
|---|---|---|---|---|---|---|
| JDG-0.5 | 360/100 to 500/100 | 0.2 (0.5) | 10 (15) | 150 | 0.72/3 | 5 |
| JDG-0.72 | 630/100 to 800/100 | 0.2 (0.5) | 10 (15) | 150 | 0.72/3 | 5 |
| JDG-1.2 | 1140/100 | 0.2 (0.5) | 10 (15) | 150 | 1.2/3 | 5 |
Note: Custom parameters beyond the scope of the above table can be determined upon consultation.

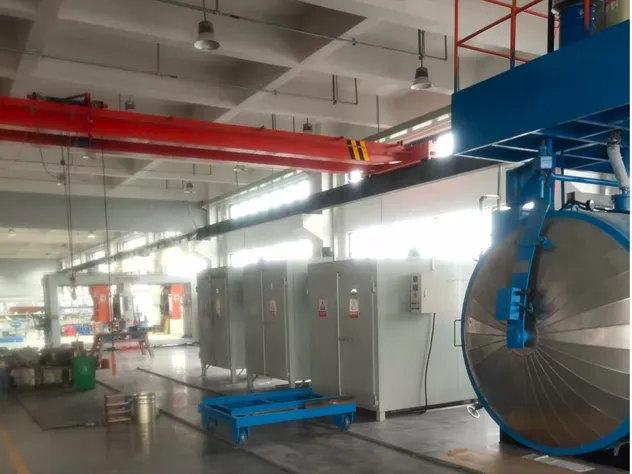

Our facility is a distinguished leader in manufacturing 0.5kV to 35kV current and voltage transformers. We prioritize scientific development, market demands, and product quality as our backbone. Equipped with cutting-edge domestic production facilities and a robust management system, we ensure excellence in every product.
Transforming complexity into simplicity with our three-step process:
Provide detailed descriptions, drawings, or reference images.
Receive a detailed quotation and customized solution within 24 hours.
Production commences upon approval, followed by prompt shipment.
