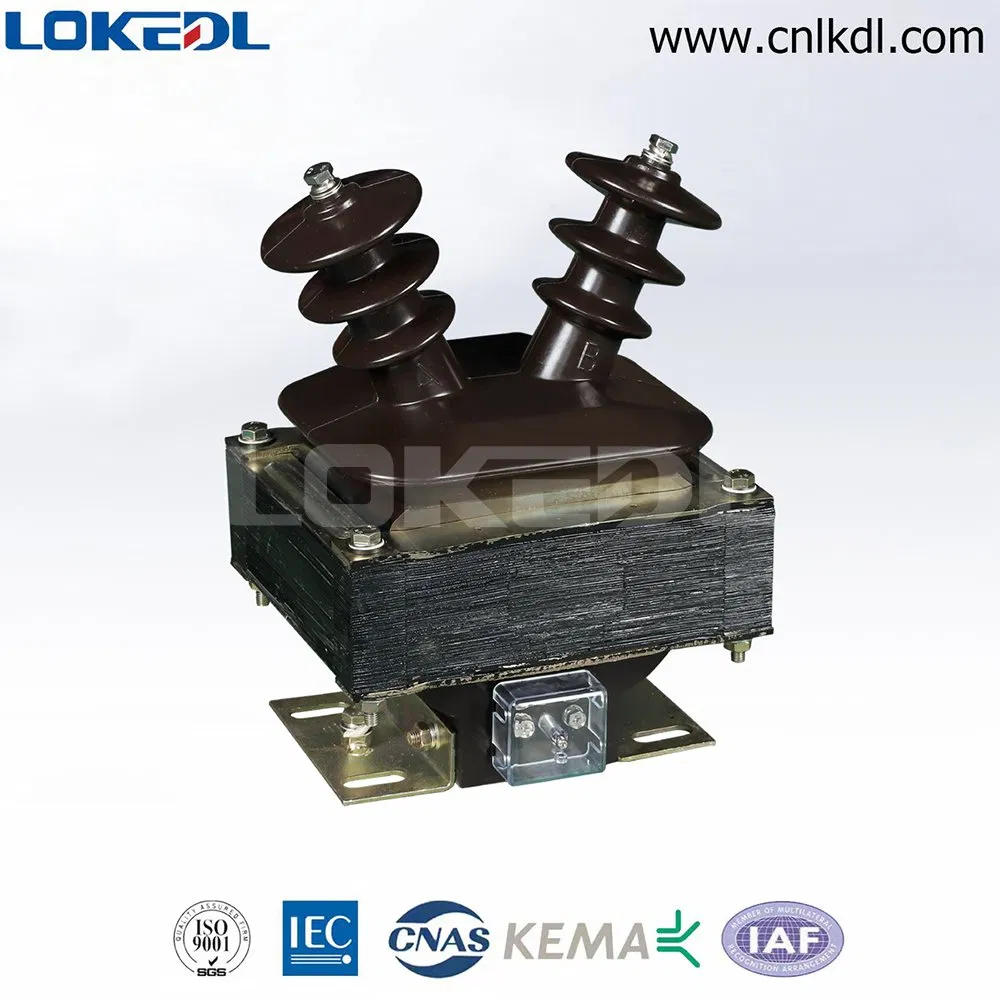

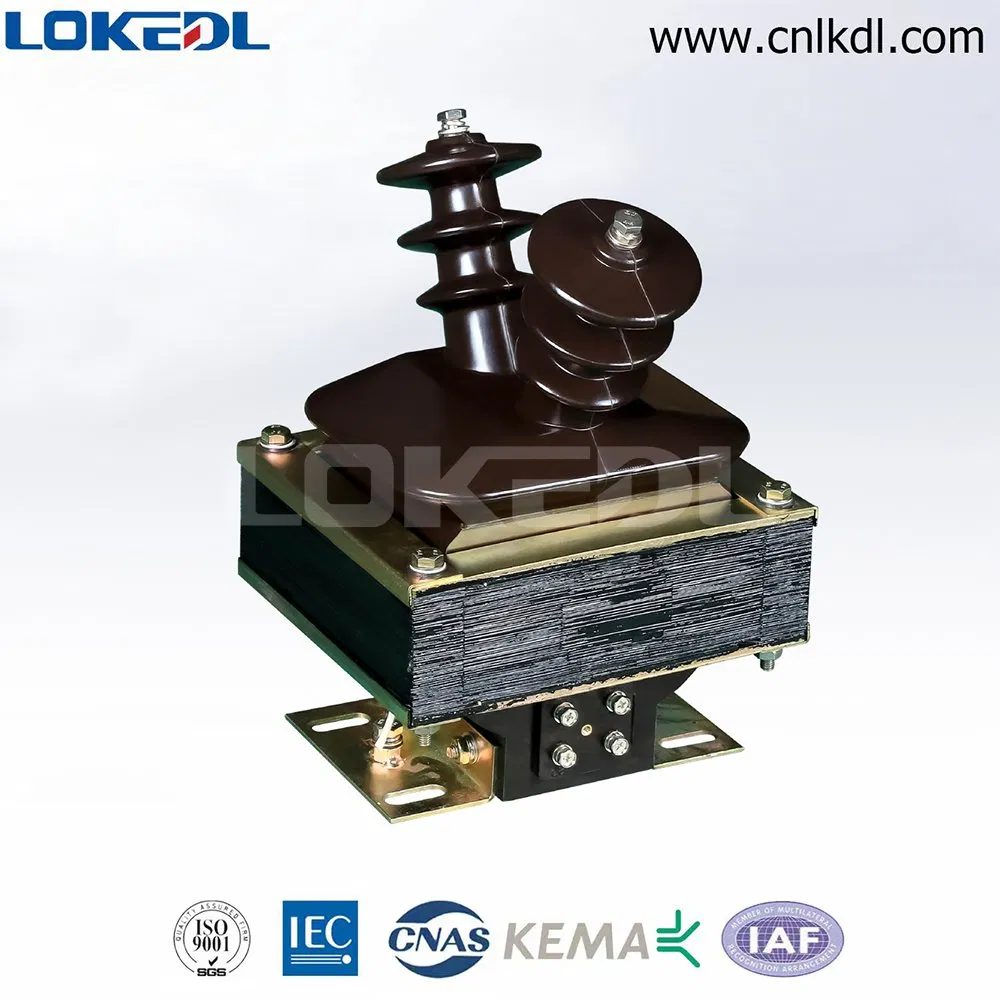

JDZ10-10 Type Voltage Transformer
The JDZ-6/10 Voltage Transformer is specifically engineered for power measurement, current monitoring, and relay protection within power systems. It operates effectively at a rated frequency of 50Hz or 60Hz and handles rated voltages ranging from 3kV to 10kV.

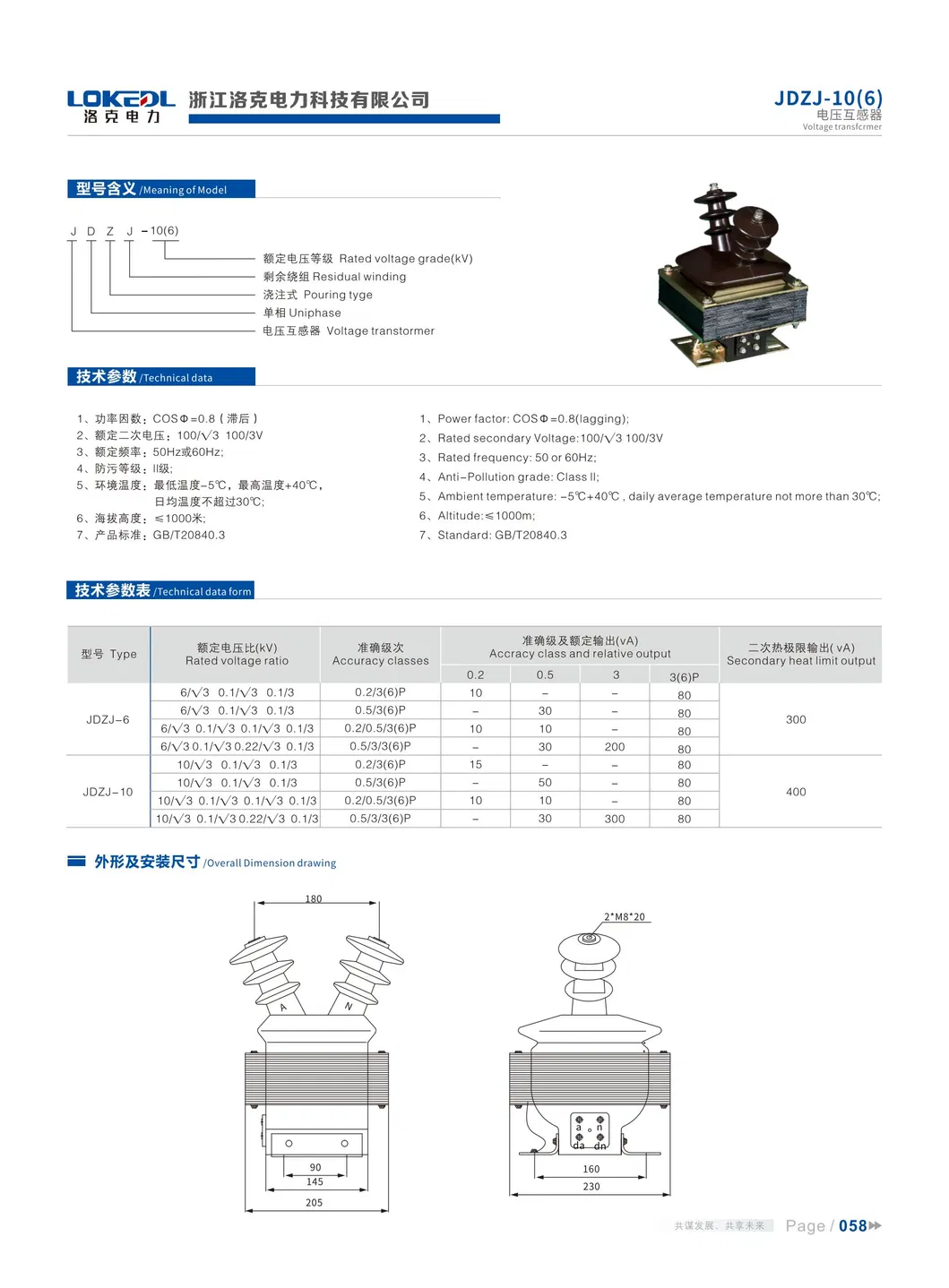

| Type | Rated voltage ratio (KV) | Accuracy classes | Accuracy class and relative output | Heat limit output (VA) | |||
|---|---|---|---|---|---|---|---|
| 0.2 | 0.5 | 3 | 3(6)P | Secondary | |||
| JDZJ-6 | 6/√3 / 0.1/√3 / 0.1/3 | 0.2/3(6)P | 10 | - | - | 80 | 300 |
| 6/√3 / 0.1/√3 / 0.1/3 | 0.5/3(6)P | - | 30 | - | 80 | ||
| JDZJ-10 | 10/√3 / 0.1/√3 / 0.1/3 | 0.2/3(6)P | 15 | - | - | 80 | 400 |
| 10/√3 / 0.1/√3 / 0.1/3 | 0.5/3(6)P | - | 50 | - | 80 | ||
The PT series features a robust post-type design, hermetically sealed with high-grade epoxy resin. Key advantages include:
