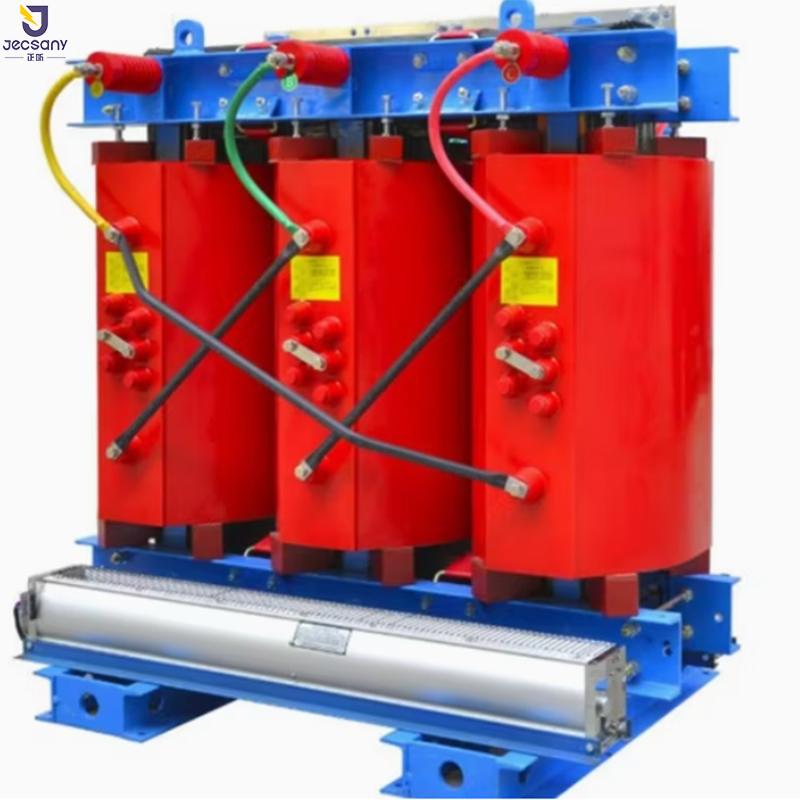

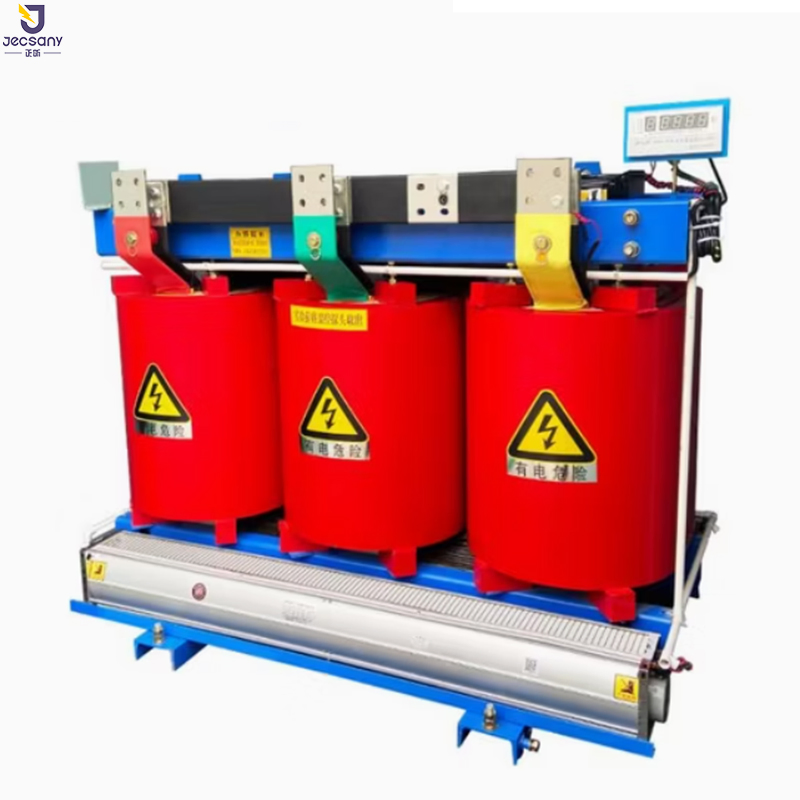

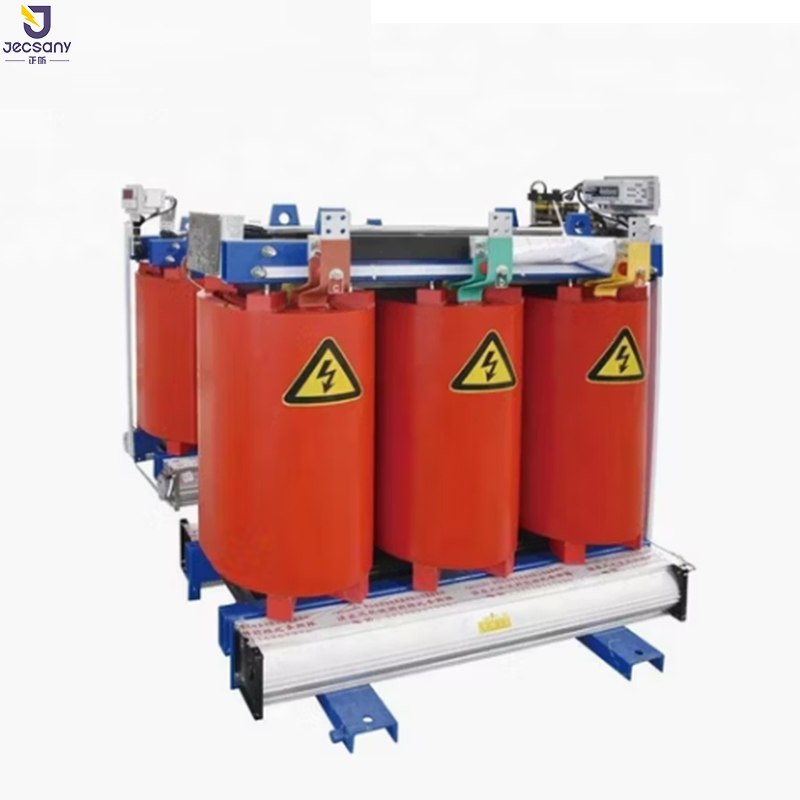

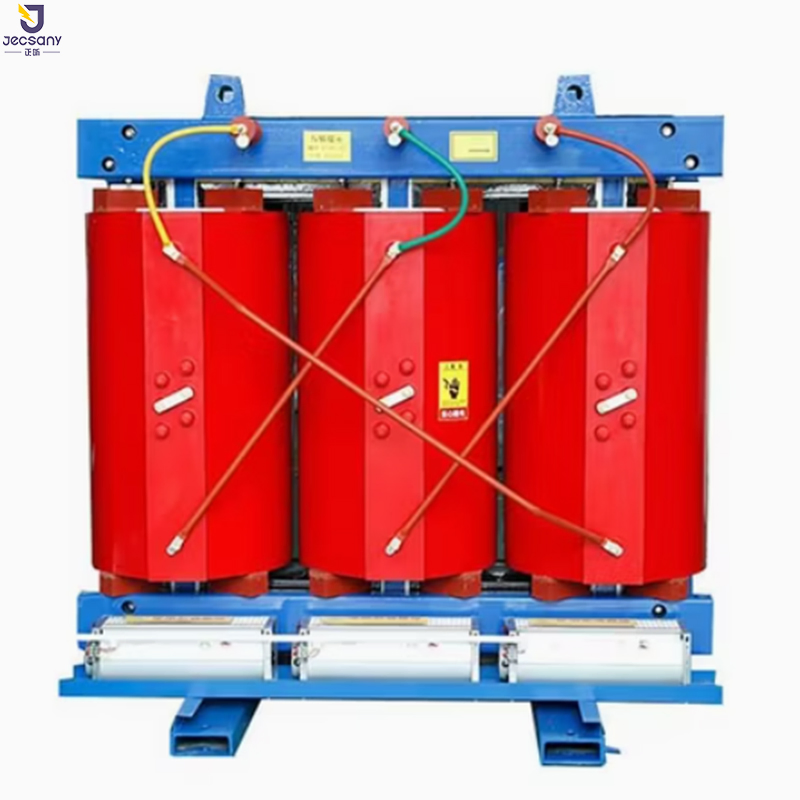

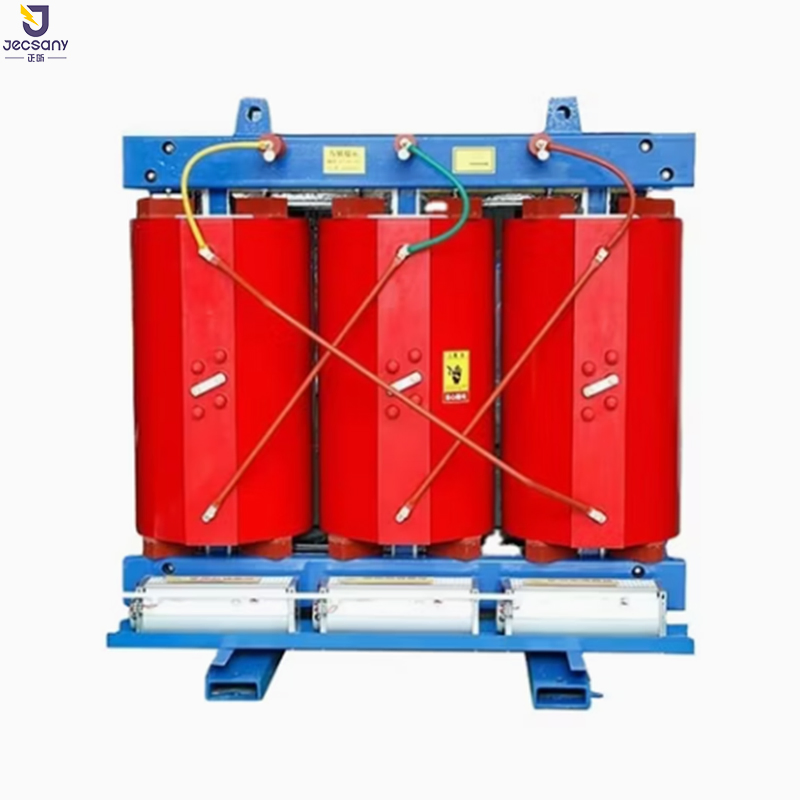

High-Efficient Cast Resin Dry Type Power Transmission Voltage Transformer
High-Efficient Cast Resin Dry Type Power Transmission Voltage Transformer
High-Efficient Cast Resin Dry Type Power Transmission Voltage Transformer
High-Efficient Cast Resin Dry Type Power Transmission Voltage Transformer
High-Efficient Cast Resin Dry Type Power Transmission Voltage Transformer
1 / 5
High-Efficient Cast Resin Dry Type Power Transmission Voltage Transformer
High-Efficient Cast Resin Dry Type Power Transmission Voltage Transformer
High-Efficient Cast Resin Dry Type Power Transmission Voltage Transformer
High-Efficient Cast Resin Dry Type Power Transmission Voltage Transformer
High-Efficient Cast Resin Dry Type Power Transmission Voltage Transformer

High-Efficient Cast Resin Dry Type Power Transmission Voltage Transformer

Customization: Available
Application: Power, Electronic, Instrument
Phase: Three
Send Inquiry

Product Description

Basic Specifications
Model NO.
SCB11-100/6-0.4
Core
Amorphous Alloy Transformer
Cooling Method
Dry-type Transformer
Winding Type
Two-winding Transformer
Certification
ISO9001
Usage
Power Transformer, Distribution Transformer
Frequency
Power Frequency
Origin
China
HS Code
8504349000
Capacity
50,000 pieces/Year
Product Overview
Three-Phase Step Down Resin Dry Type Transformer

The Three-Phase Step Down Resin Dry Type Transformer is a highly efficient and reliable power distribution solution designed to step down higher voltage levels to lower, usable voltages in industrial, commercial, and residential applications. Encapsulated in high-quality epoxy resin, this transformer offers exceptional thermal and electrical insulation, ensuring long-term durability and safety in demanding environments.

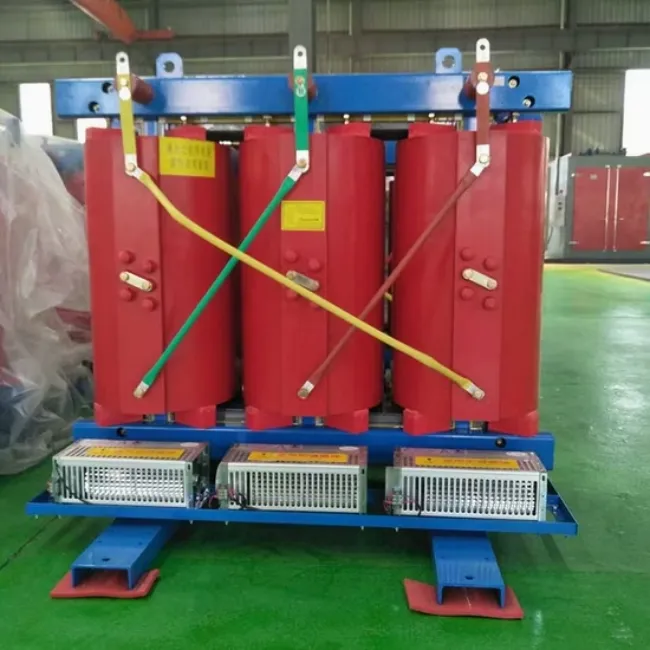

Three-Phase Step Down Resin Dry Type Transformer
Key Features
◈
High Efficiency: Minimized energy losses for reduced operational costs.
◈
Dry-Type Construction: Oil-free, non-flammable, and eco-friendly.
◈
Resin Encapsulation: Superior protection against moisture, dust, and corrosion.
◈
Thermal Stability: Excellent heat dissipation for stable high-load operation.
◈
Low Noise: Engineered for quiet performance in sensitive environments.
◈
Fire-Resistant: Self-extinguishing properties enhance overall safety.
◈
Low Maintenance: Robust build eliminates frequent service needs.
◈
Global Standards: Compliant with IEC, IEEE, and CE regulations.

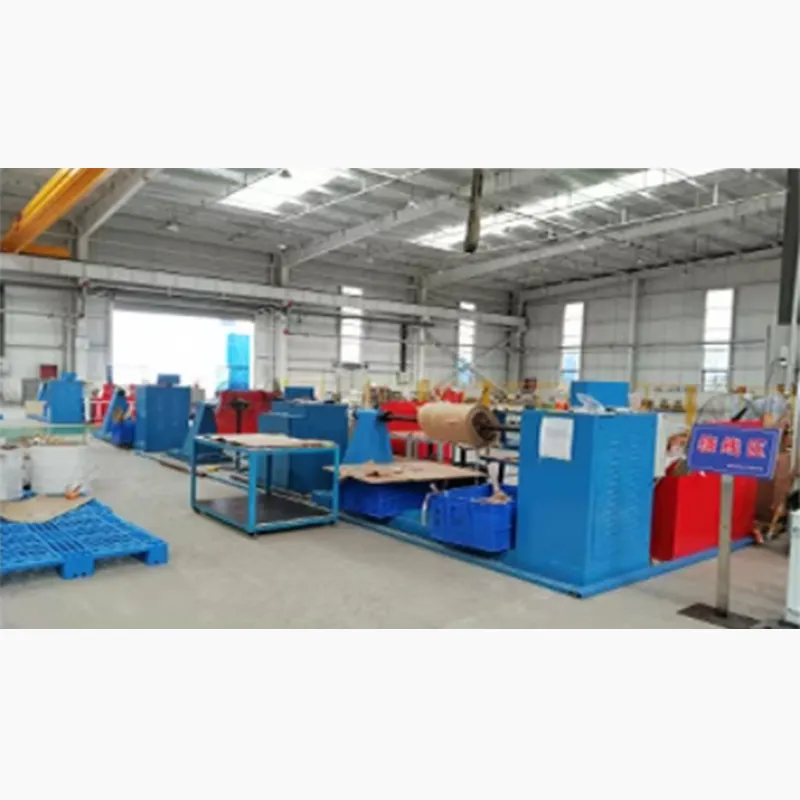

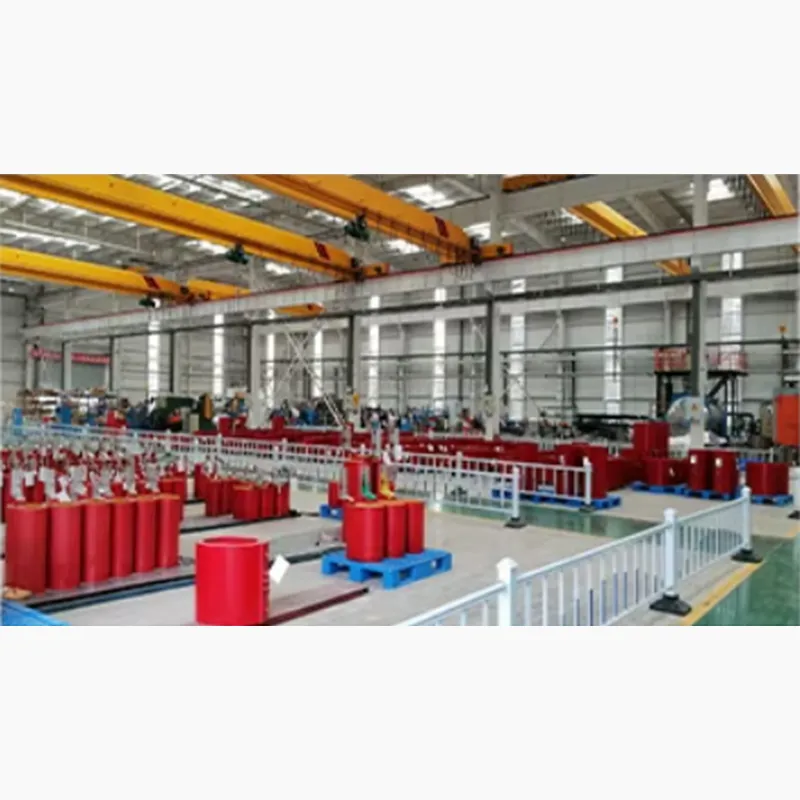

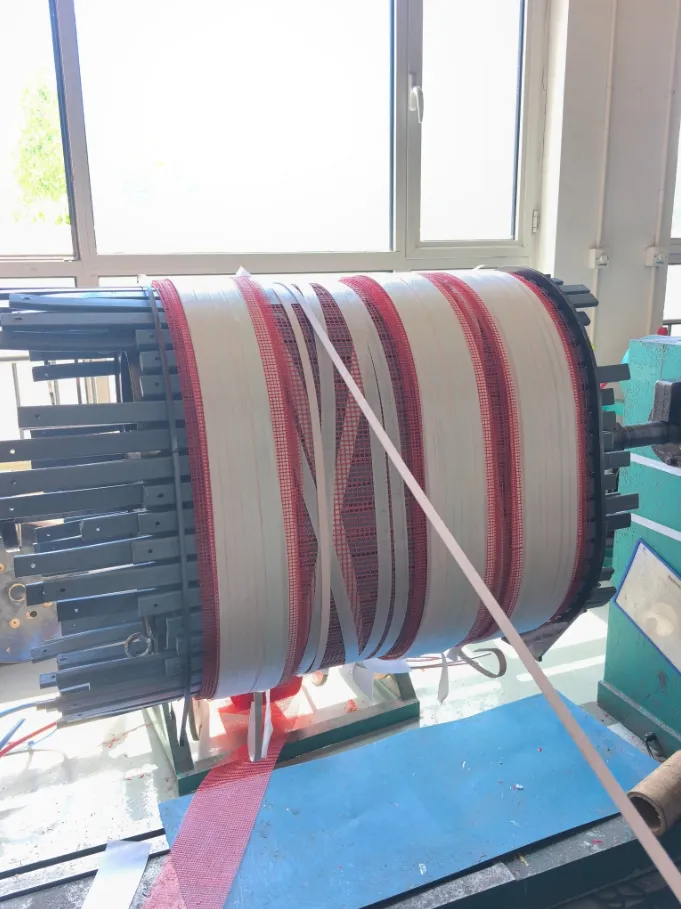

Transformer Component 1 Transformer Component 2 Transformer Component 3
Technical Parameters
Rated Capacity (KVA) Voltage Combination & Tap Range Winding Connection No-load Loss (W) Load Loss (W) No-load Current (%) Short Circuit Impedance (%)
High Voltage (KV) Tap Range Low Voltage (KV)
30 - 2500 6 / 6.3 / 6.6 / 10 / 10.5 / 11 ±5% or ±2x2.5% 0.4 Dyn11 170 - 3240 710 - 17170 2.6 - 1.0 4 - 6
Packaging & Delivery
Packaging details
Frequently Asked Questions
Q1: What are the primary benefits of a resin dry-type transformer?
A: They are moisture-proof, fire-resistant, and maintenance-free. Since they don't use oil, there is no risk of leakage or explosion, making them ideal for indoor use.
Q2: Can this transformer be used in high-humidity environments?
A: Yes, the epoxy resin encapsulation provides excellent protection against moisture and environmental contaminants, ensuring reliability even in humid conditions.
Q3: What cooling methods are available for these units?
A: These transformers typically use Natural Air cooling (AN). For higher load requirements, Forced Air cooling (AF) systems can be integrated.
Q4: Is it suitable for residential building installations?
A: Absolutely. Due to its low noise levels and high safety rating (self-extinguishing), it is a preferred choice for hospitals, offices, and high-rise apartments.
Q5: Does the transformer meet international safety standards?
A: Yes, the product is manufactured in compliance with major international standards including IEC, IEEE, and CE, ensuring global quality assurance.
