| Model NO. | SCB | Core | Core-type Transformer |
| Cooling Method | Dry-type Transformer | Winding Type | Two-winding Transformer |
| Certification | ISO9001-2000, ISO9001, CCC | Usage | Distribution Transformer |
| Frequency | High Frequency | Shape of Core | Ring |
| Insulation Grade | F | Connection | Dyn11 / Yyno |
| Voltage Class | 10kv 35kv | Capacity Range | 30~Any kVA |

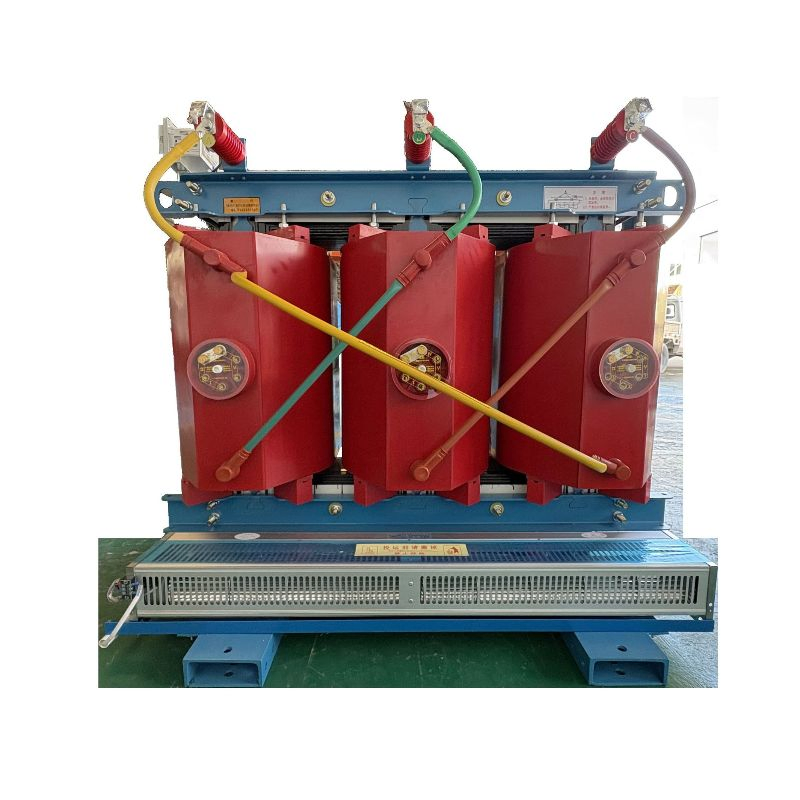

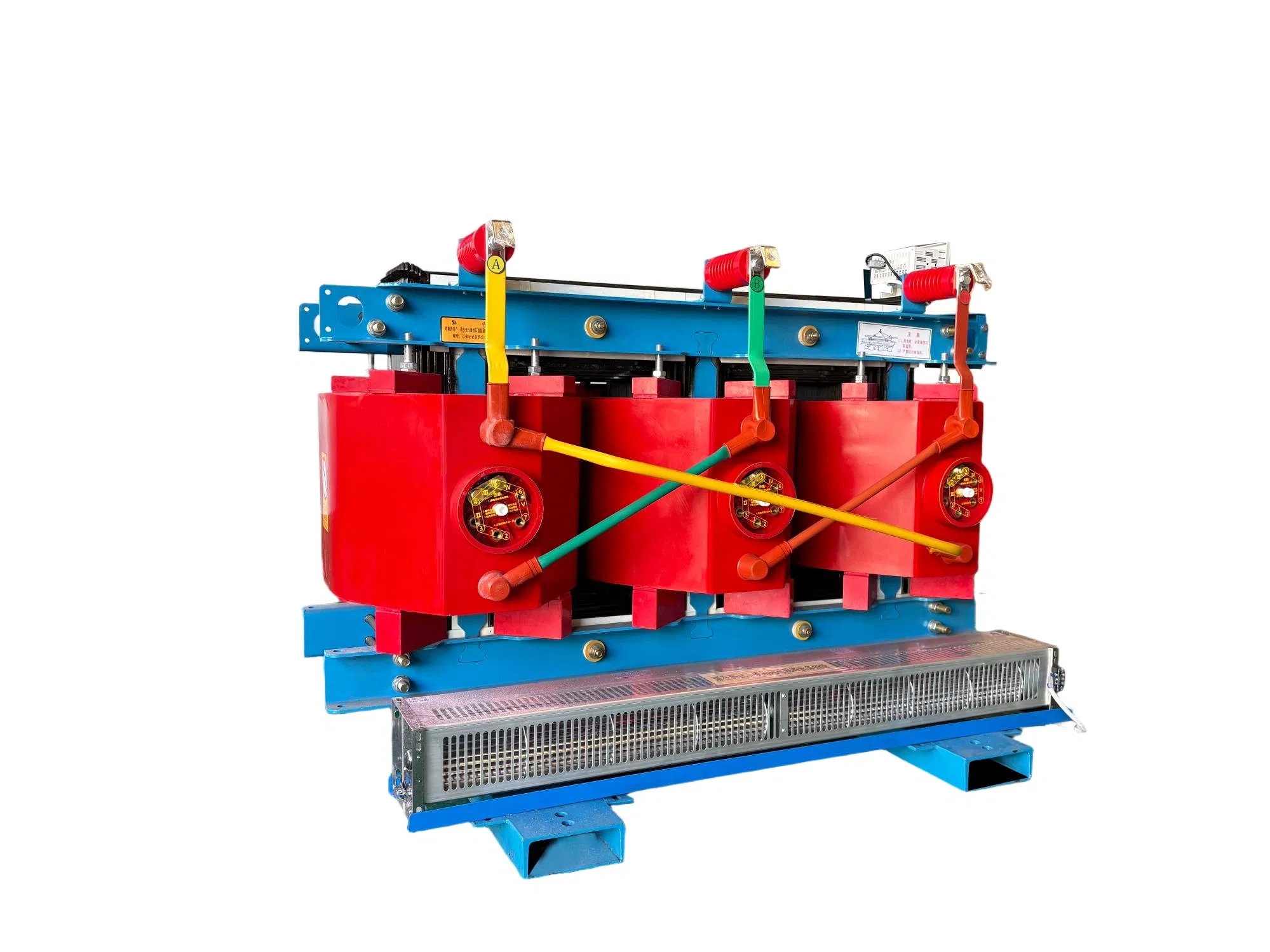

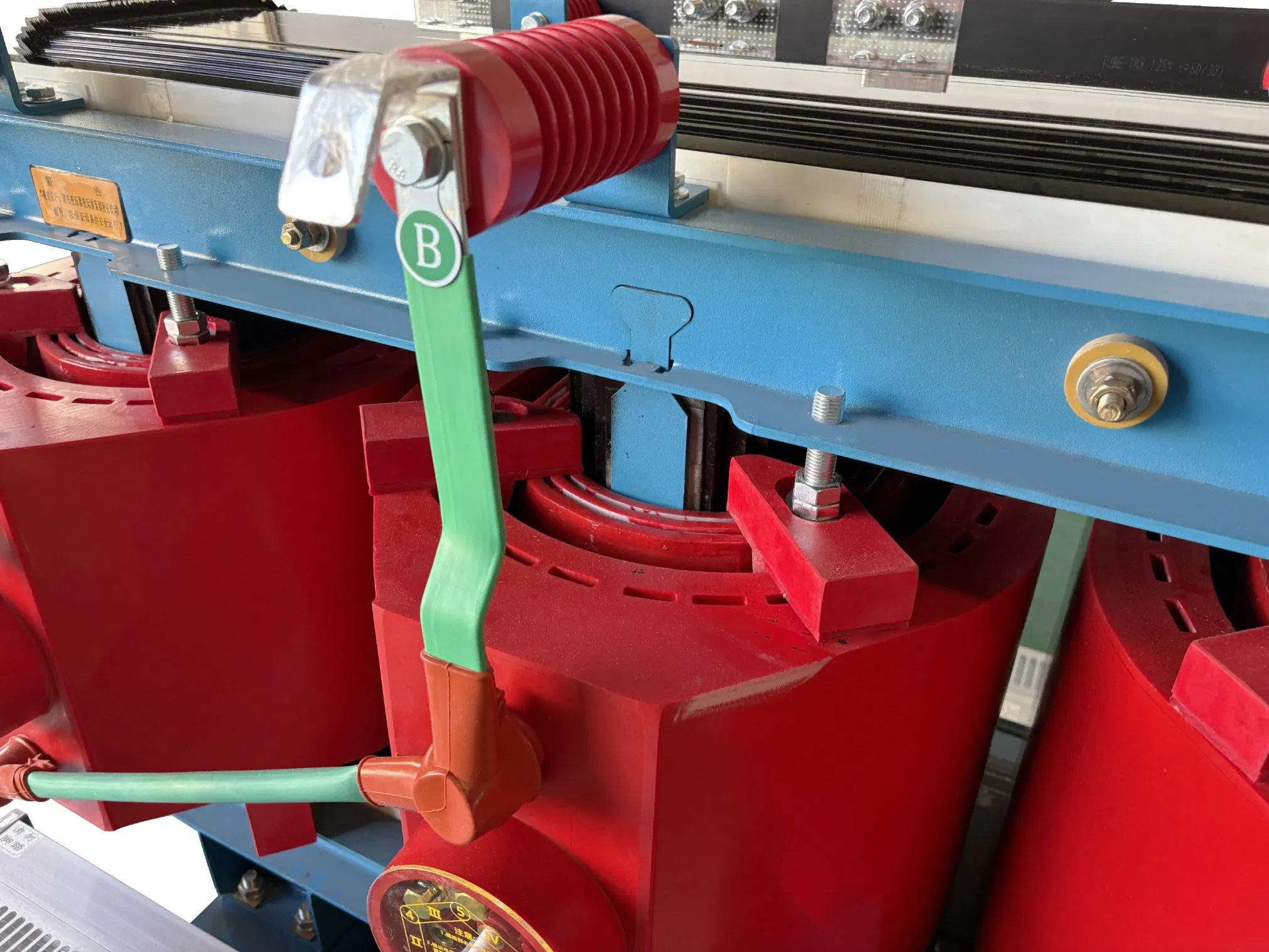

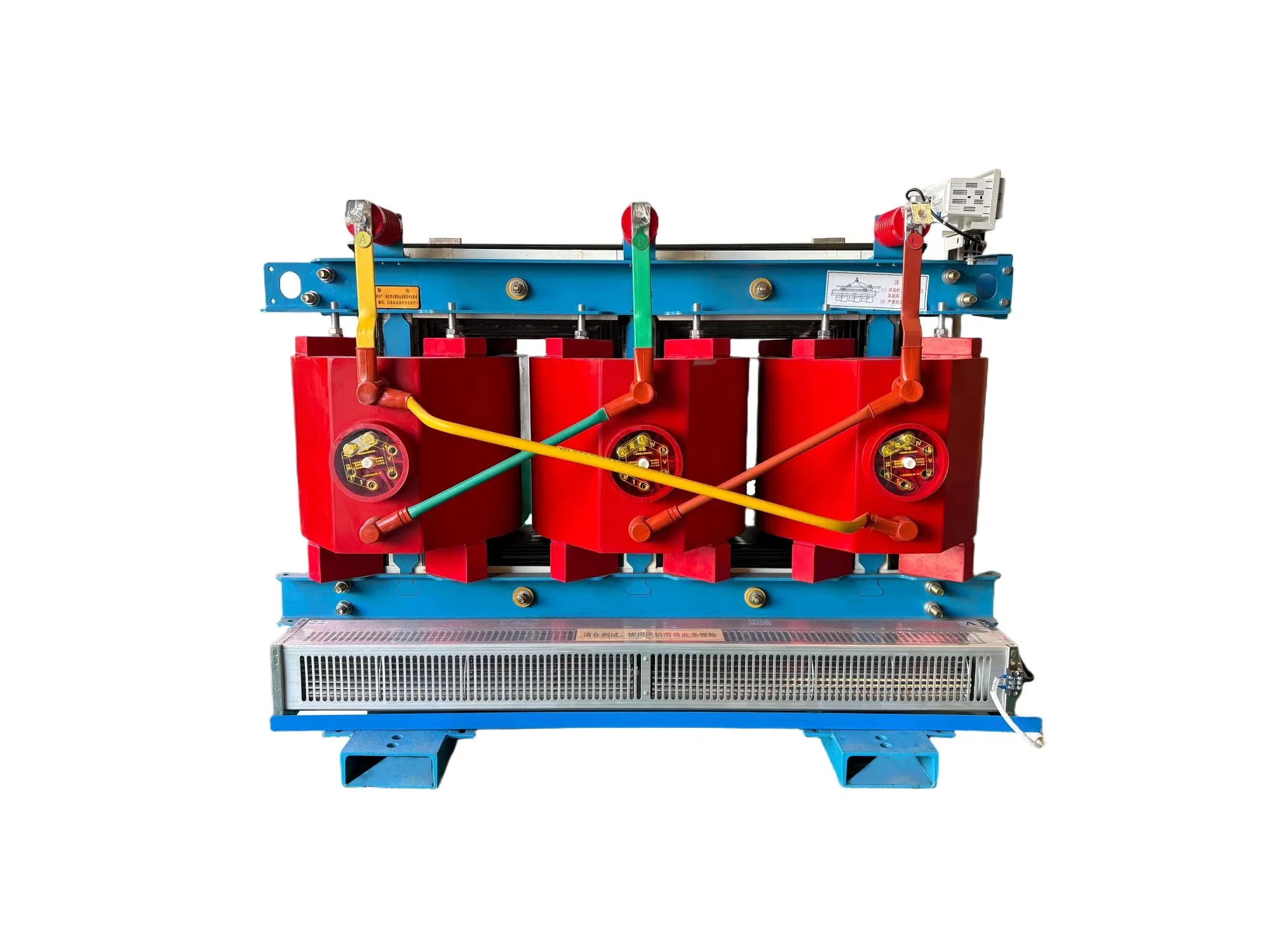

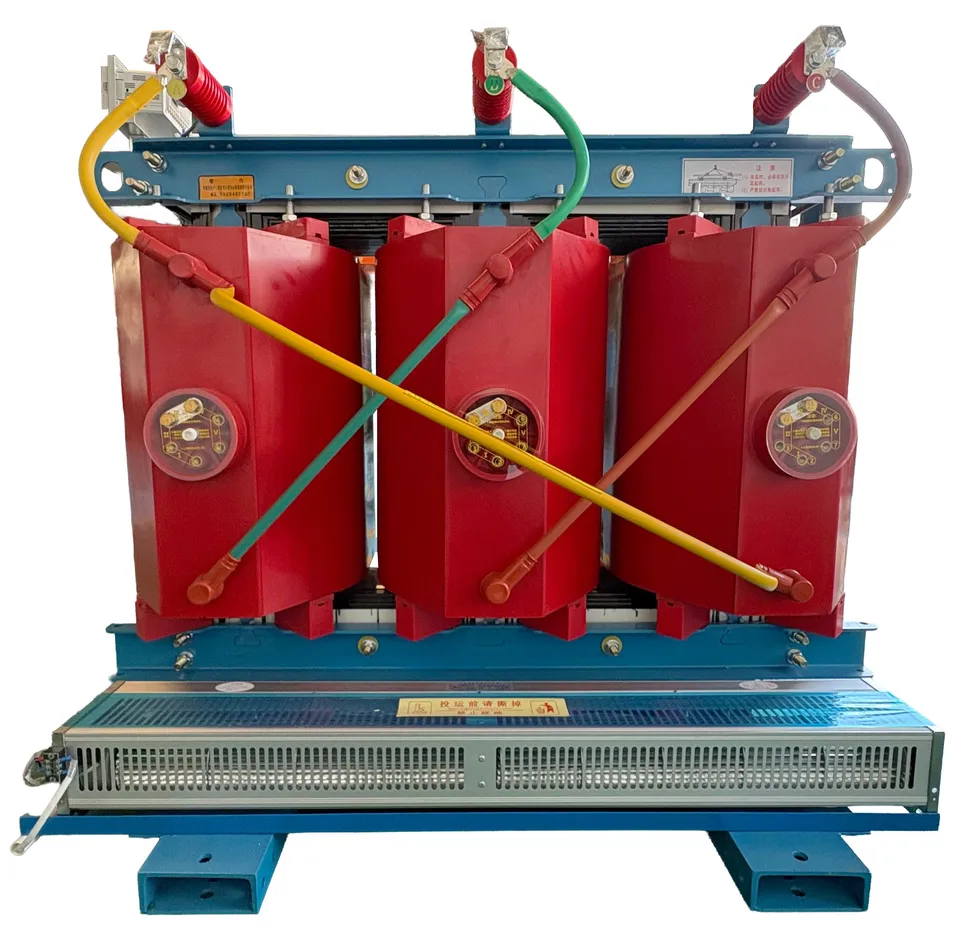

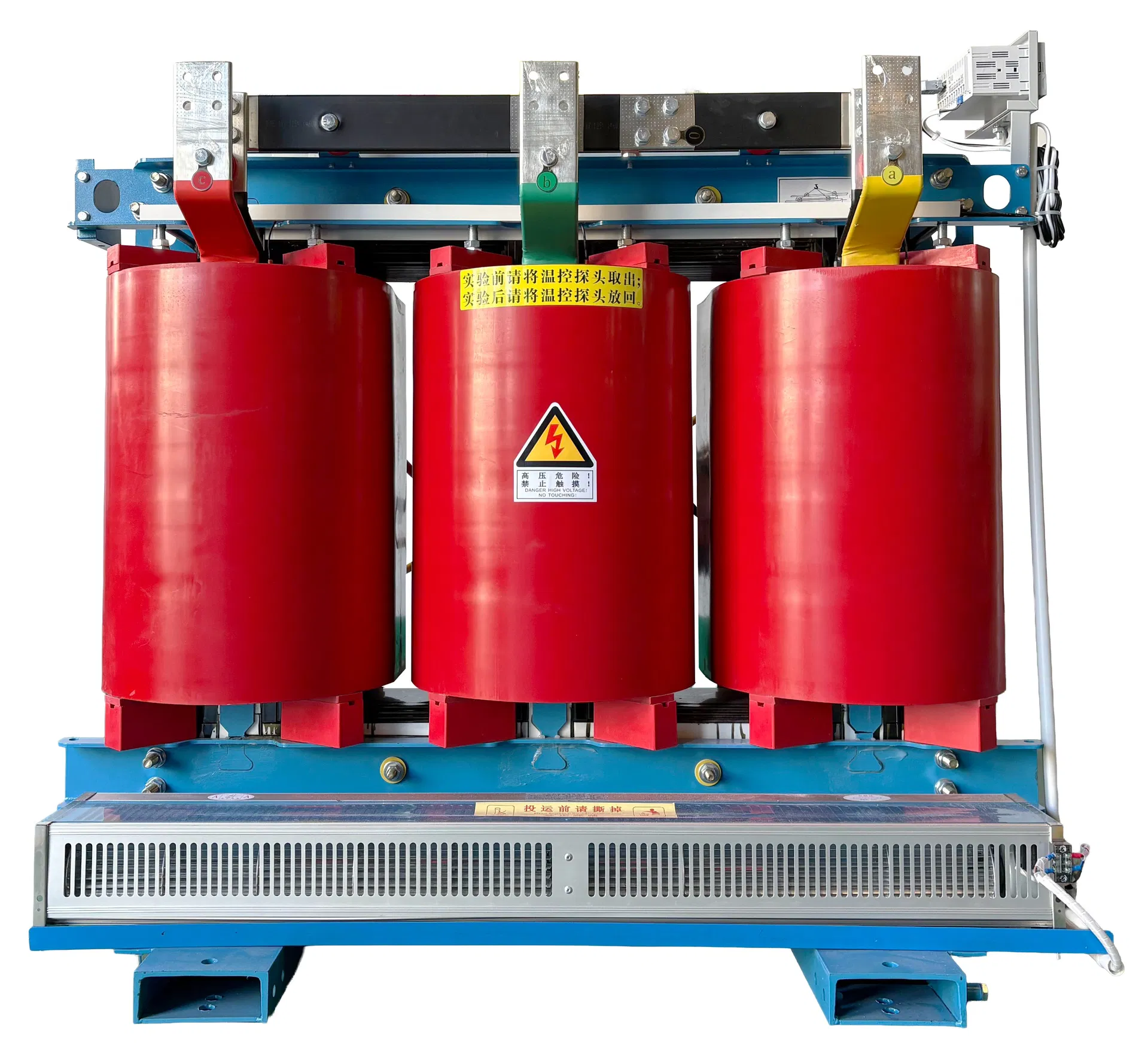

The SC(B)10-SC(B)18 series of dry-type power transformers with coils cast in epoxy resin are fire-resistant indoor-type products. Designed for environments where installation space is limited and proximity to the load center is required, these transformers meet stringent fire protection requirements. They are the preferred choice for low-voltage complete sets of equipment in power stations, factories, hospitals, high-rise buildings, commercial centers, airports, tunnels, and nuclear power plants.
| Standards | IEC60726, GB 1094.11-2022, GB/T10228-2023 | Insulation Level | LI75 AC35/AC5 |
| Capacity Range | 30~10,000kVA | Partial Discharge | ≤10PC |
| Voltage Class | 10KV, 35KV | Insulation Grade | F |
| Tapping Range | ±2x2.5% / ±5% | Max. Heat Rise | 100k |

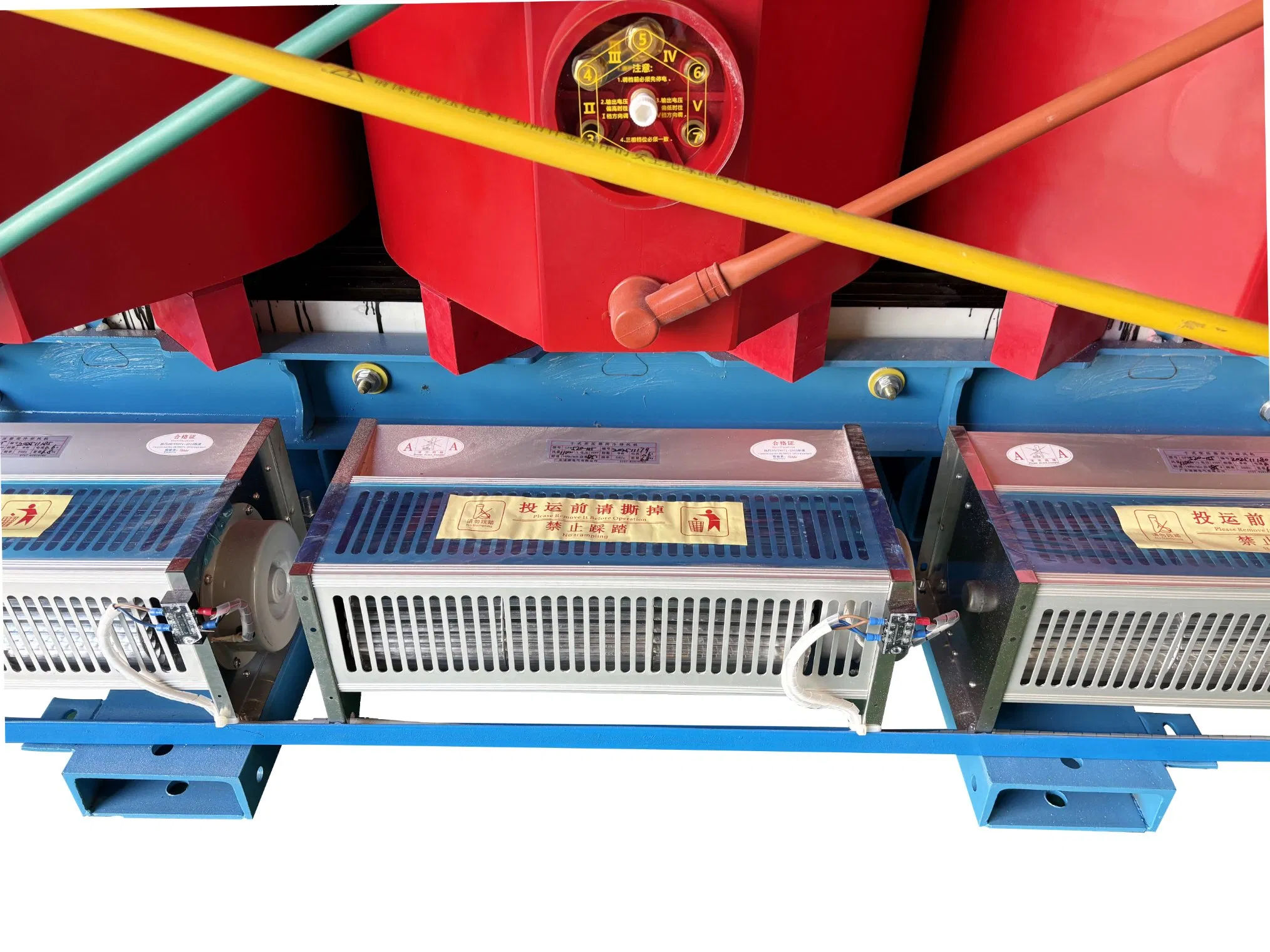

| Cooling | AN (Natural) / AF (Fan) | Protection | IP00, IP20, IP23 |

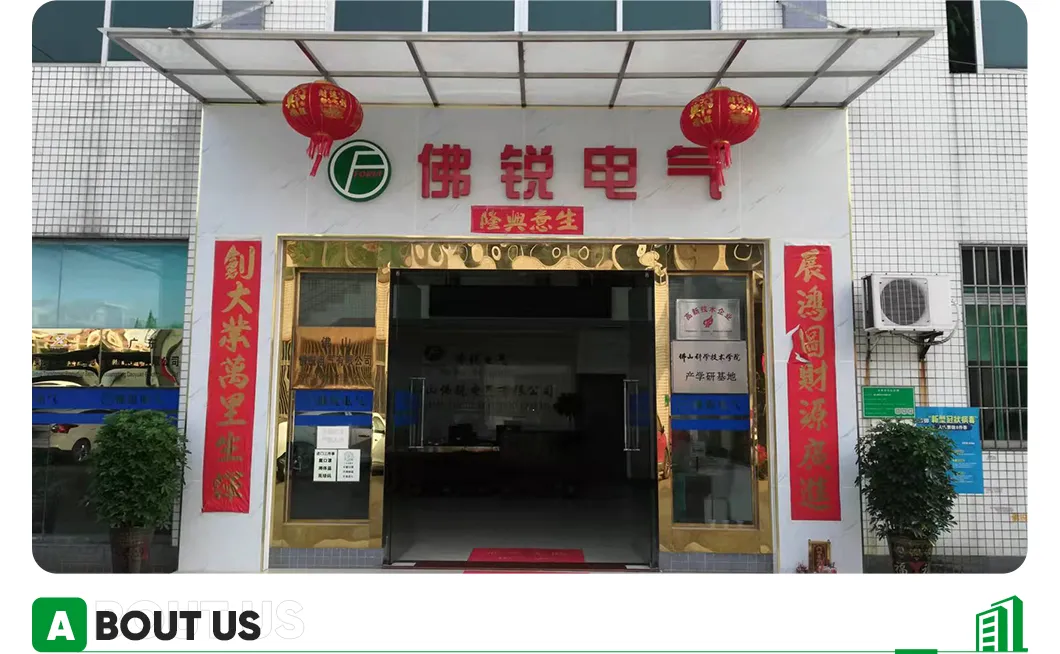

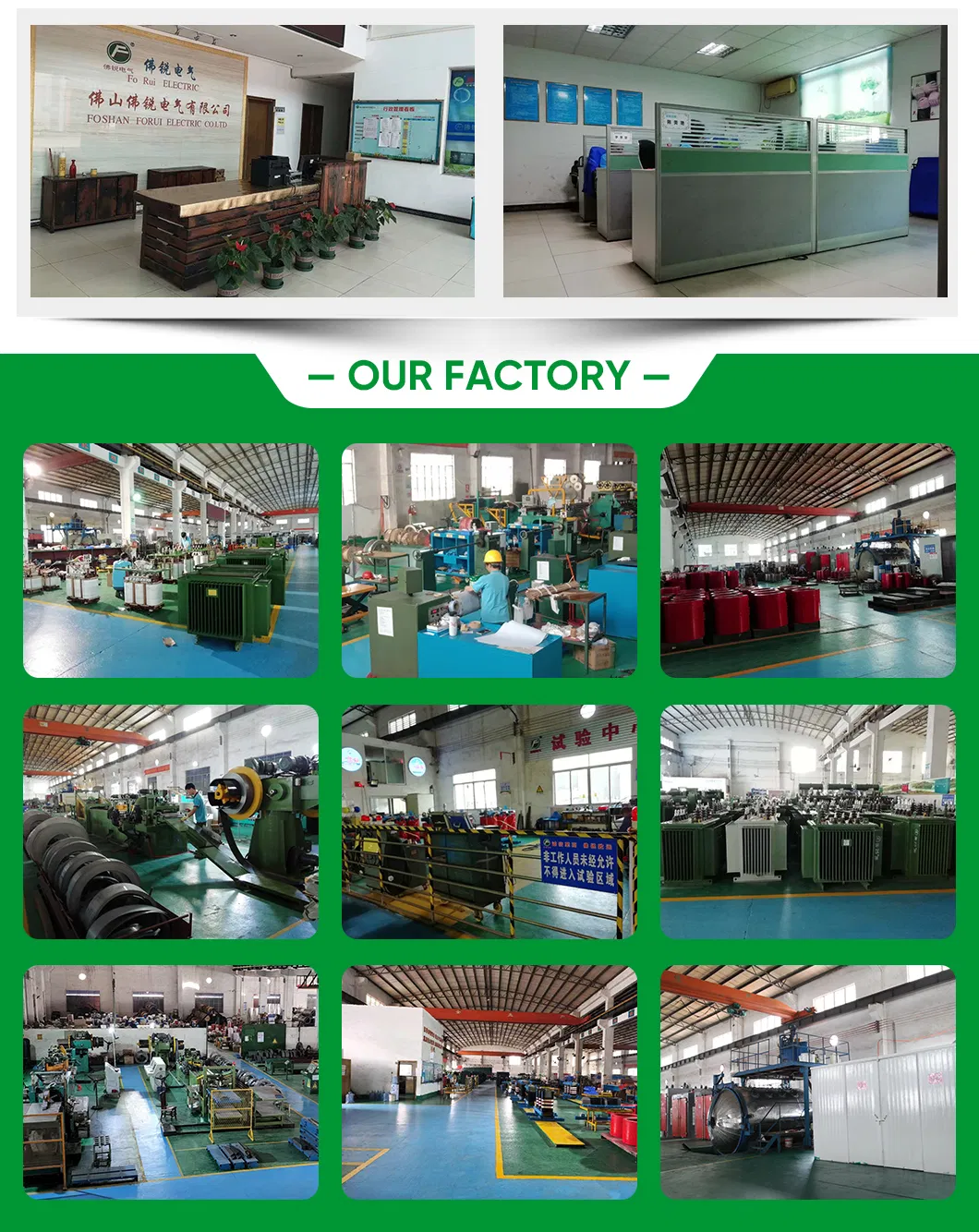

Established in 2007 with a registered capital of 50 million, our enterprise is a national high-tech entity specializing in R&D, production, and sales. We maintain an annual production capacity of 5 million KVA across dry-type and oil-immersed transformers.

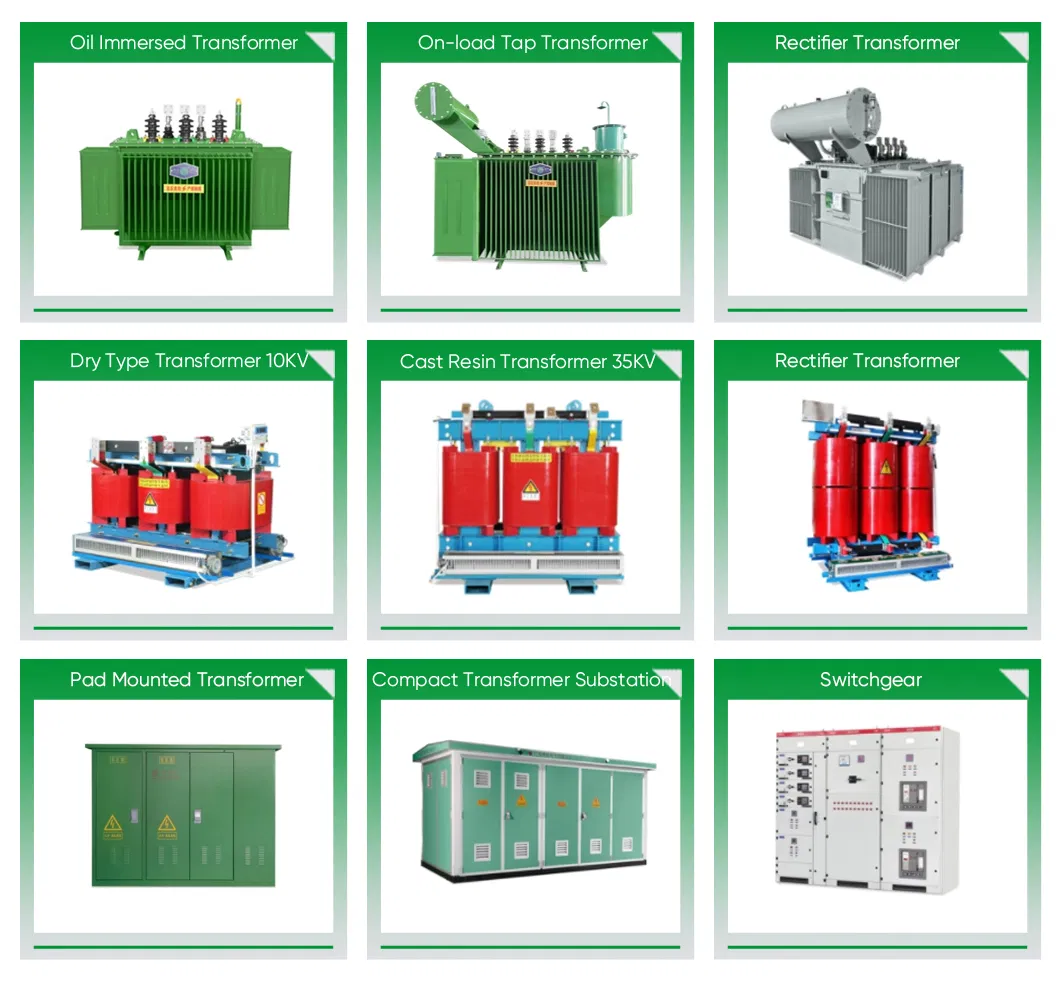

Our comprehensive product line includes underground transformers, rectifier transformers, prefabricated substations, and wind power/photovoltaic transformers, alongside HV/MV/LV switchgears.
| Package Size | 144.00cm * 103.00cm * 113.00cm |
| Gross Weight | 700.000kg |
| Lead Time | 20-45 days (depending on order quantity) |
