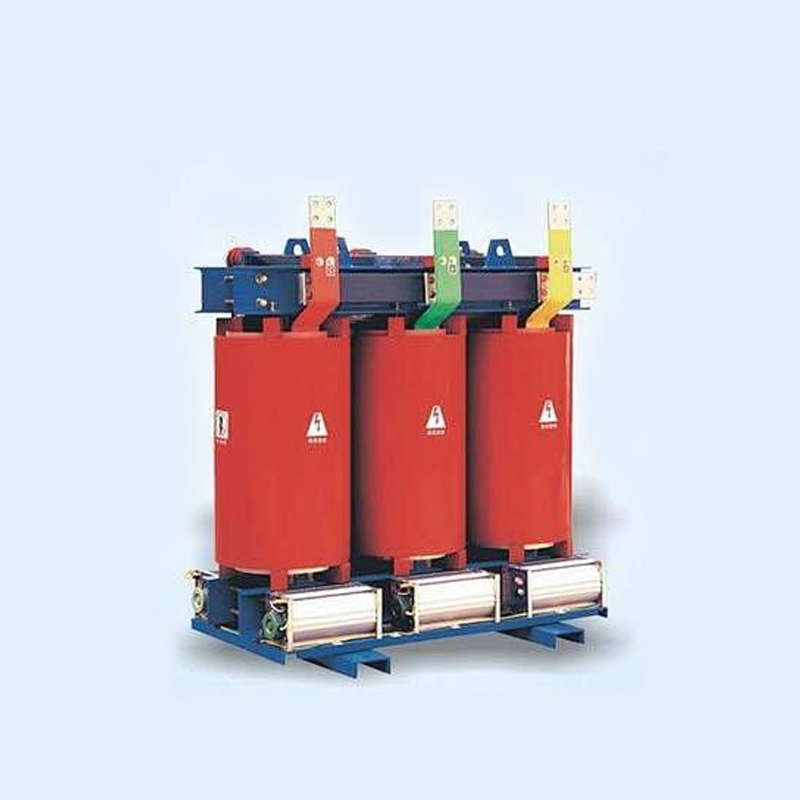

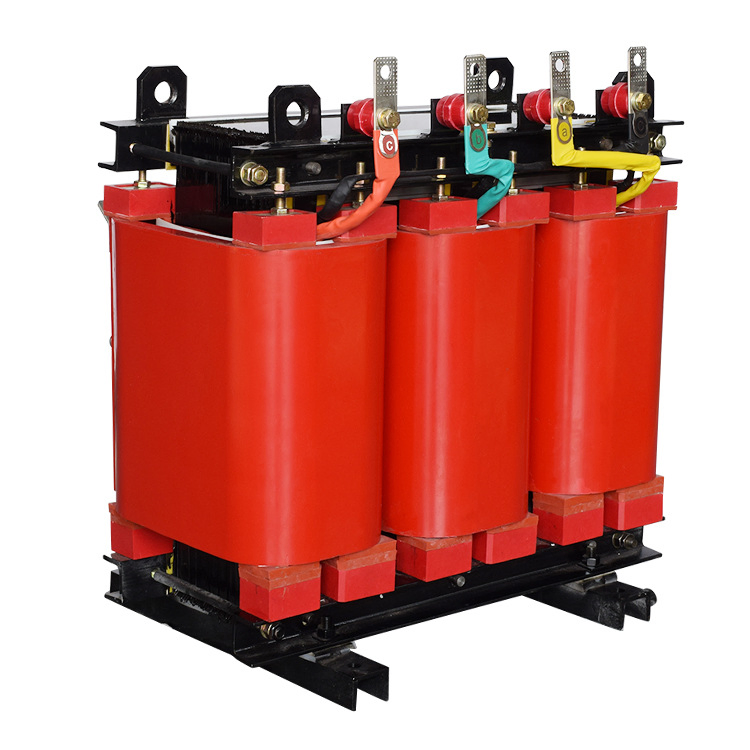

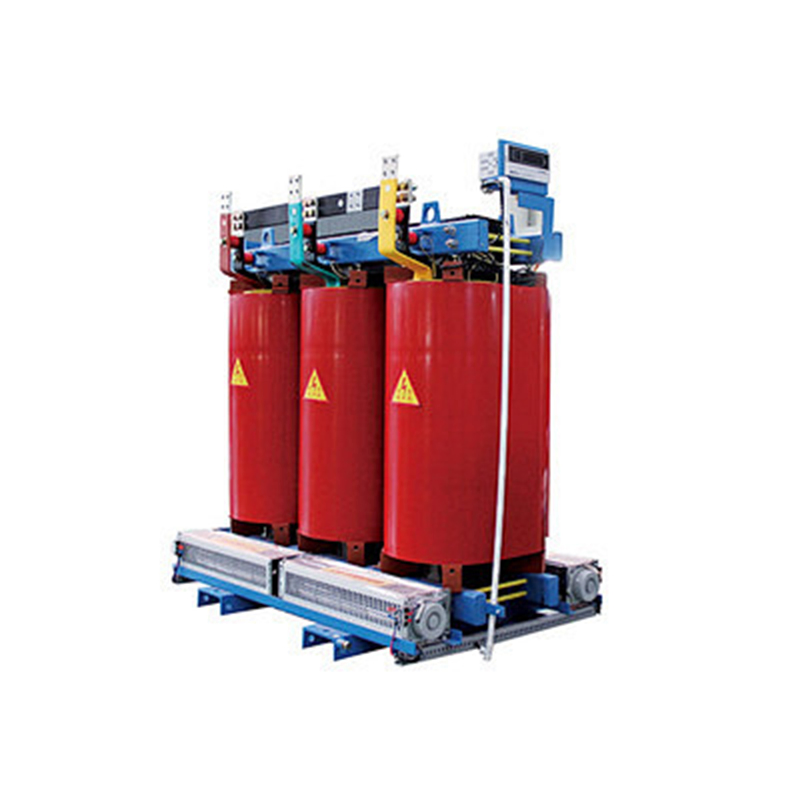

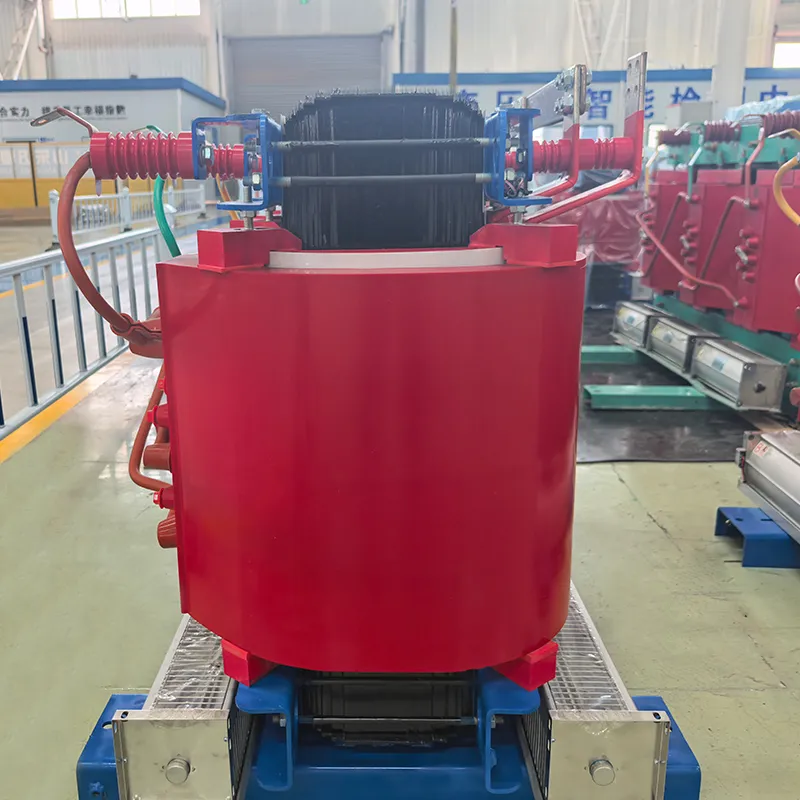

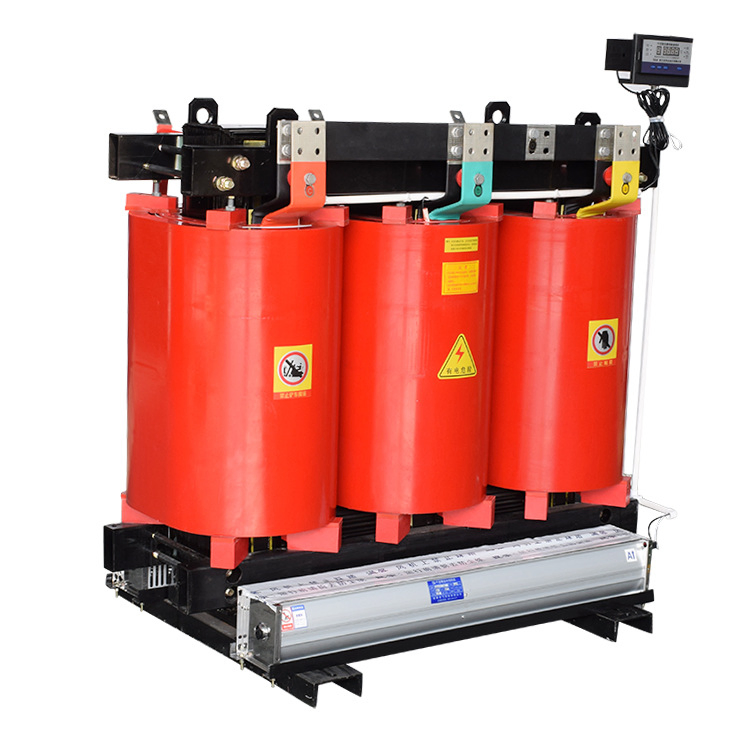

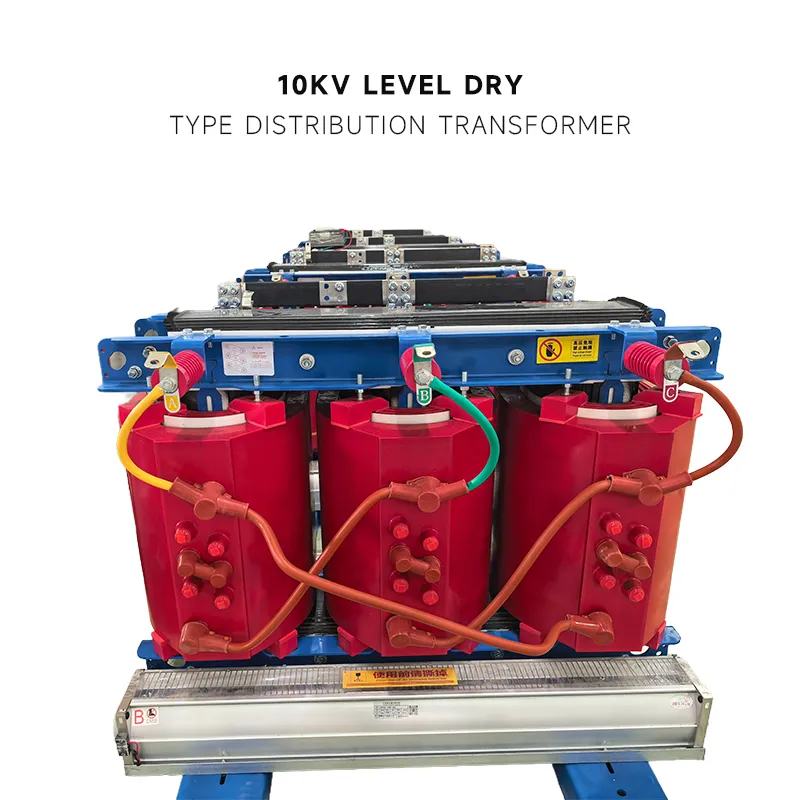

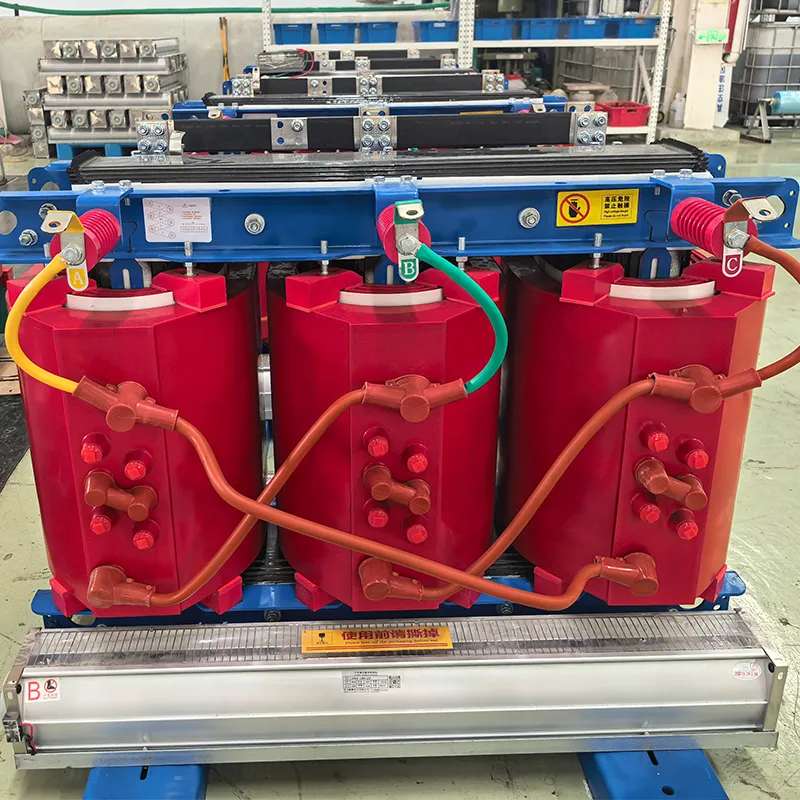

The dry-type distribution transformer meets the requirements of national standards GB/T1094.11 and GB/T10228. The iron core is manufactured using cold-rolled grain oriented high magnetic silicon steel sheet technology, and the wire surface is wound with high-strength enameled copper wire (or copper foil) and cast into shape.
It is widely used in power plants, power stations, industrial and mining enterprises, residential areas, user substations and other distribution systems with high power supply quality requirements.
1. Product model: SC(B) 11; SC(B)12; SC(B)14; SC(B) 18 type;
2. Voltage regulation methods: on load regulation and off load regulation;
3. Capacity range: 30-5000kVA;
4. Frequency: 50Hz, 60Hz;
5. Phase number: three-phase;
6. Connection group labels: Dyn1l, Yyn0;
7. Short circuit impedance: User requirements or national standards;
8. Insulation level: F level or H level;
9. Usage environment: indoor;
10. Cooling method: AN/AF.
